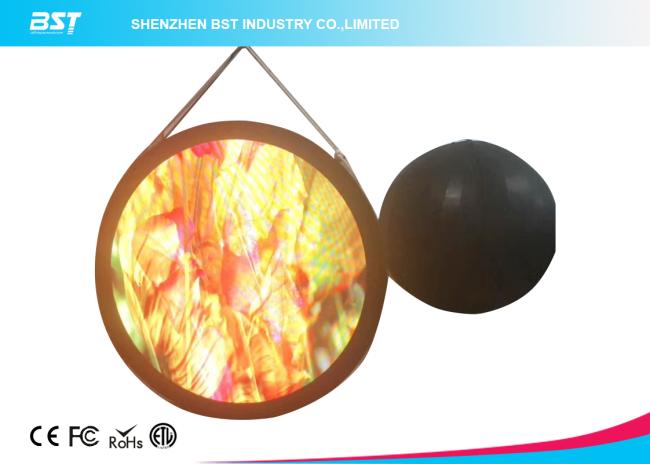

Ball Shape Curved LED Screen For Shopping Malls , Entertainment Venues
Ball Shape Curved LED Screen For Shopping Malls , Entertainment Venues
Curved LED Screen Description:
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, what's App or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, ETL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
Curved LED Screen Specification:
|
Item |
Technical Specification |
|
Pixel |
Pixel pitch: 10mm |
|
Pixel configuration: SMD3528 1R1G1B |
|
|
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm |
|
|
Module resolution: 24×32pixels |
|
|
Module |
Module size: 240mmx320mm |
|
Cabinet size: 480mm×960mm |
|
|
Cabinet |
Cabinet resolution: 4608 pixels |
|
Cabinet material: aluminum |
|
|
Gross weight: 9.3kg |
|
|
Module quantity: 6pcs= 2(w) x 3(h) |
|
|
Power consumption : Max.:800W/m² Everage: 300W/m² |
|
|
Screen parameter |
Drive method: 1/8 scan |
|
Brightness: 1200cd/m² |
|
|
Angel adjustable: 0-15degress |
|
|
Density: 10000 pixel/m² |
|
|
Whole display flatness: ≤ 1mm juncture |
|
|
Best view distance: ≥ 10m |
|
|
Viewing angle: Horizontal: 140° Vertical: 140° |
|
|
Humidity(RH): ≤ 90~95% |
|
|
Working temperature: from -30°C to +60°C |
|
|
Working voltage: AC220V/110V±10% |
|
|
Refresh frequency: ≥ 1500Hz |
|
|
Frame rate: ≥ 60Hz |
|
|
Protection grade: IP43 |
|
|
MTBF: More than 10000hrs |
|
|
Life time: 100,000 hrs |
|
|
Control system |
Control system: Linsn or Nova |
|
Signal interface: DVI |
|
|
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m |
|
|
Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000, WIN8) |
Q1: What's the pixel pitch for Outdoor LED Display Screen ?
A1: Indoor&Outdoor (4mm/5mm/6mm / 8 mm/ 10mm/12mm/16mm )
Q2: Where is it used for?
A2:
•---Outdoor advertising, digital billboards, advertising in big companies
•---Sports halls, fields, playgrounds.
•---Airports, bus stations and railway passenger terminals.
•---Facades of shopping malls, department stores, banks and car dealerships.
•---Architecture and social projects, information systems in cities.
•---Show-business, concerts, festivals, motor shows and other public events.
environment.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar or Linsn controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Linsn. Also support other controlling system, like Novastar, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
