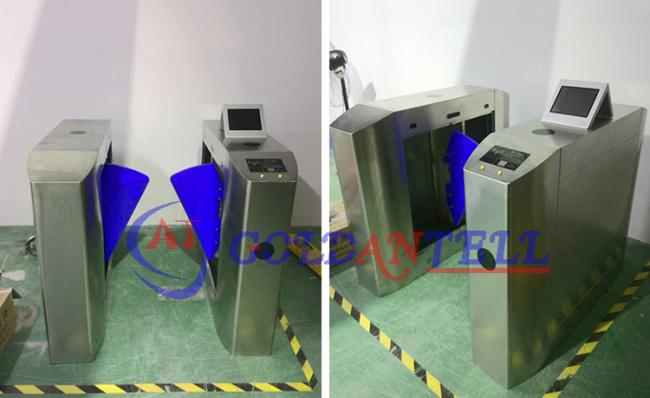

Stainless Steel Flap Barrier Gate 550-600mm Passage with ESD Tester
| Item | Specification |
|---|---|
| Instrument Dimensions | 8 inch LCD monitor |
| Pedal Size | (W) 400mm x (L) 420mm x (H) 20mm |
| Operating Voltage | Input AC220V output DC12V |
| Working Hours | Unlimited |
| Environmental Conditions | Humidity: 0%~90%, Temperature: 5°C~40°C |
| Data Storage | Automatically stores records and ESD test data (except client mode), recording information up to 100,000 or more |
| Test Range and Accuracy | Left shoe setting: 0.01-1000MΩ, Accuracy ±5% Right shoe setting: 0.01-1000MΩ, Accuracy ±5% Wrist-strap setting: 0.1-35MΩ, Accuracy ±5% |
- ESD test range is significantly higher than regular items
- Features a larger 8-inch ESD monitor screen compared to standard 4-inch displays
- Supports IC or ID card access control in turnstile system
| Feature | Specification |
|---|---|
| Power Consumption | AC220V, 50Hz/AC110V, 60Hz (optional) |
| Housing Size | 1200*300*1000mm |
| Housing Material | 1.5-2mm, 304# stainless steel, corrosion resistant |
| Net Weight | 150KG |
| Drive Motor | DC brushless motor |
| Channel Width | 500-600mm |
| Pass Speed | 30-40 persons/min |
| IP Protection | IP54 |
| Input Signal Options | DC12V/dry/contact/RS485/RS232/Remote |
| Fail-Safe Operation | Railing-off against power off |
| Working Temperature | -15°C to 75°C |
| Working Environments | Indoor, outdoor |
| Relative Humidity | ≤95% (non-condensing) |
| MCBF | 2,500,000 cycles |
- Smart card reader compatible with various cards including IC and ID cards
- Expandable to automatic identification systems for access control, pedestrian flow control, attendance check, or fare collection
- Equipped with international standard electrical interfaces for easy integration with other R/W devices
- Remote supervision computer control and management capability
- Infrared photocell system for unauthorized entry detection and anti-tailgating protection
- LED gate direction indicator (green arrow for entry free, red cross for passage locked)
- Dual input signal operation (access controller, button, or other equipment)
- Audible sound prompt and information display function
- Automatic flap opening during power interruption with N/C mode recovery after power restoration (optional)
- Counting function for multiple passes (N≤16) with single card swipe (optional)
- Reverse passing alarm function (optional)
