Fashionable Design Stainless Steel Flap Barrier Turnstile Passage Speed 40 Persons / Min
Price:
negotiation
MOQ:
1pc
Delivery Time:
7 working days after received your payment
Brand:
Goldantell
Product Description
Fashionable Design Stainless Steel Flap Barrier Turnstile Passage Speed 40 Persons/Minute
Competitive Advantages
- ODM/OEM services including custom product design, logos, packaging, and sizing
- Comprehensive system solutions with various software management options
- 16-hour professional customer support service
- Exceptional after-sales service including remote troubleshooting and free spare parts replacement within 1 year
Applications
Public Places: Subways, airports, stations, libraries, parks, museums, offices, and commercial buildings
Entertainment Venues: Movie theaters, fitness centers, clubs, and swimming halls
Business Facilities: Hotels, factories, banks, prisons, hospitals, schools, and enterprise entrances
Entertainment Venues: Movie theaters, fitness centers, clubs, and swimming halls
Business Facilities: Hotels, factories, banks, prisons, hospitals, schools, and enterprise entrances
Technical Specifications
| Item | GAT-212-1 (single motor); GAT-212-2 (double motors) |
|---|---|
| Working Voltage | AC220±10%V 50±10%HZ |
| Dimensions | 1200/1400mm (L) × 280mm (W) × 1000mm (H) |
| Retractable Arm Length | 260mm |
| Passage Speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage Width | ≤600mm |
| Operational Lifespan | 3 million cycles |
| Opening/Closing Time | 0.6 seconds |
| Power On Delay | 3 seconds |
| Reset Time After Failure | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive Motor | DC 24V brush motor |
| Operating Environment | Indoor/outdoor (with cover) -10℃～70℃ |
| Communication Interface | Standard RS485 interface (distance ≤1200m) |
| Input Interface | +12V level signal or pulse width >100ms |
| Humidity Tolerance | ≤90% (non-condensing) |
| Housing Material | 304# stainless steel |
Key Features
- Configurable working modes via control panel
- Dual anti-pinch protection (mechanical and infrared)
- Automatic locking for unauthorized access attempts
- Collision avoidance system for arm protection
- Adjustable automatic reset function (1-60 seconds)
- Optional infrared reset system (4 or 6 pairs)
- Compatible with various access control systems
- Bi-directional operation capability
- Remote management via computer
- Visual status indicators and alarm functions
- Self-diagnostic system for maintenance
Motor Configuration Comparison
Customization Options
- Customizable appearance design
- Stainless steel thickness options: 1.2-2.0mm
- Material grades: 304 or 316 stainless steel
- Surface finishes: satin, polished, anti-fingerprint, frosted, electroplated, or baked
System Integration
- Compatible with fingerprint, facial recognition, card reader, QR code, and barcode systems
- Special functions: counting and coin-operation capabilities
- ESD tester system integration
Packaging Options
- Standard packaging: two packages per pair
- With access control system: enclosed wooden box
- Without access control system: choice of crate or enclosed wooden box

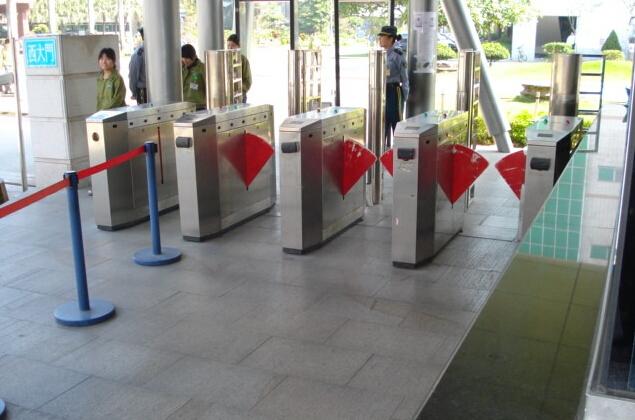

Application Examples
