316 / 304 Stainless Steel Access Full Height Turnstile For Prison ,

Bank , Construction Site

Technical Data of Access Full Height Turnstile:

Voltage : AC220V/110V 50HZ

Control circuit : DC24V

Power consumption : 100W

Signal output: relay or 12v pulse

Material : 304 stainless steel

S/S thickness : 1.0~1.5mm

Surrounding Temp : -35~+70

Hydraulic damper : adjustable

Gross weight : 700kg

Dimension : 2060(L) *1200 (W) * 2300 (H)

Humidity : 95%

Protection level : IP55

Entry passage width : 600mm

Benefits & Features access full height turnstile :

1. bi-directional passage

2. electrical controls for both directions

3. integration with any identification or access control system

4. automatic reset of barrier wings after each passage

5. push button switch override controls for emergency situations

6. cable or wireless remote control

7. indoor and outdoor application

8. high level of security

9. anti-backup device to prevent reverse rotation

10. Unique two-way anti-reverse function.

11, Programmable device's operating status through the built-in small press plate on control board,

12, Anti-rushing function ,when the gate signal is not received, the turnstile arms locked automaticlly.

13, The center rotor will be set free (default) or locked (optional) automatically when the power is off.

14, Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you

didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is

1~60s you can adjust it what time is suit for you)

15, The turnstile can work with door access control system/ consumption system /ticket system/biometric

recognition system/ ESD system and so on

16, Can be unidirectional or bidirectional control of personnel access.

17, Can manager and long-range control the turnstile directly by managing the computer

System working principle

1) Turn on the power, after 3 seconds it will into the working state of the system.

2) When card reader read the valid card, buzzer emits sweet sound, indicate to pedestrians it succefully

read the card; also on the information read from the card to judge, handling, application sent to the main

control board through the signal ;

3) control board receive the signal from the reader, and the comprehensive treatment, to give effective

control signals to the motor, the motor running, limit switch control electrical switch point, the gate open

(normally open mode, the motor does not move), Allow pedestrians

Application of access full height turnstile:

Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,

Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym,

Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special

Access Control

Competitive Advantage of full height turnstile

1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom

package.

2. we can provide not only product, but also system software management.Save your time and cost.

3. Special service from Goldantell:

For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if

spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any

fee.

4. Friendly and professional customer service people help you in 16 hours.

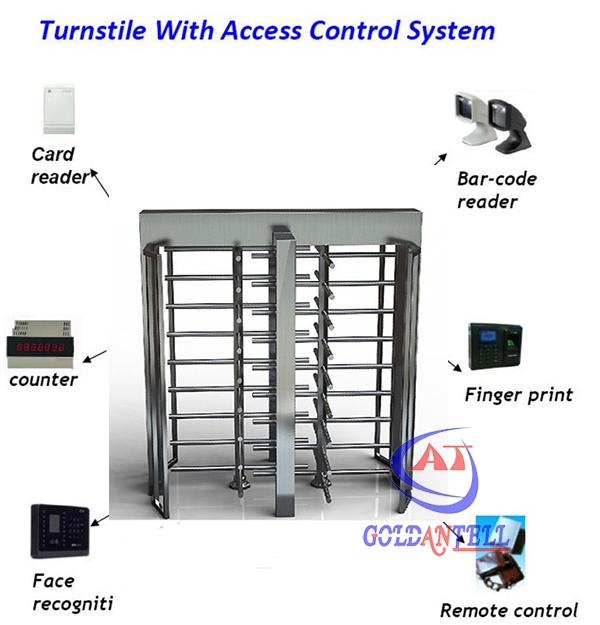

Compatible Acess Control System

RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access

Control, remote button
