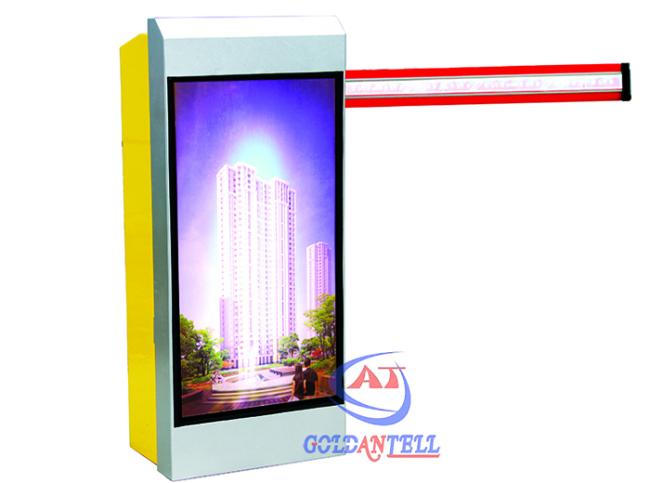

Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy Duty Waterproof IP54

Common problem


Analysis

Solution

When motor running, the boom does not work.

1. the key-pin of main shaft of motor drops
2.bending-arm of mechanism part breaks-down


1. open the motor and refix the key-pin
2. dismount the mechanism part and replace the bending-arm

The arm vibrates during moving-down or reaching its horizontal position

1. Non-balance caused by weak spring tension;
2. Arm’s screws are loose;
3. The case is not fixed well.

1. replace the spring according to the Matching table of starndard spring or change hanging-hole’s position; or adjust the connection screw-rod of the spring to correct position;
2. fasten arm’s screws;
3. fasten the botls of the case;


The arm stops during movement.

1.wrong adjustment of limit switches
2.too much spring tension


1.check the connection of limit switches and correct;
(see connection drawing fordetails)
2.replace the spring or change hanging-hole’s position;


Anti-collision fails

ground sensor or IR wire damages or wrong connection


Replace ground sensor or Irparts, correct the connection carefully according to the drawing;


The arm could not reach right position.

Wrong adjustment of limit switches

place the arm in horizontal orveritical position, adjust the photo-barrierto the middle of photoelectric switches till lightis on. Red light for reaching horizontal position; green light is for reaching vertical position;
