CE 6M Road Safety Stainless Steel Boom Barrier Gate Automatic 50W Auto-Close Mode 50Hz - 60Hz
CE 6M Road Safety Stainless Steel Boom Barrier Gate Automatic 50W Auto-Close Mode 50Hz - 60Hz
1 Quick Detail:
GAT-32 series Intelligentized boom barrier gate utilizes innovative technology design and manufactured
with precision machinery to guarantee satisfaction in quality and reliability for years.
2 Specifications:
|
Power
|
250W |
|
Housing Size
|
344*290*1090 mm |
|
Housing color
|
Silvery |
|
Rail type
|
straight |
|
Rail material
|
Stainless Steel |
|
Rai lifting time
|
3.5S(fast) / 6S(ordinary) |
|
Rail length
|
4.5m(fast) / 6m(ordinary) |
|
MCBF
|
≥5,000,000 times |
|
Motor speed
|
30r/min |
|
Wave pressure
|
Yes |
|
Bumping bounce back
|
N/A |
|
Traffic light
|
Optional |
|
Working Temperature
|
minors 10°C to 45°C |
|
Working environments
|
indoor,outdoor |
|
Relative humidity
|
<90% coagulation free |
3 Functions and Descriptions:
1. Bidirectional self-locking function.
2. Time protection function.
3. "Gate open" command has high priority.
4. "Close" command memory function available.
5. Remote control interface, Remote control emittercan be equipped.
6. Three operation modes: Remote control,push button,manually operation.
7. Loop detector can be equipped.
8. Infrared detecting interface, infrared detecting device can be equipped.
9. Wave pressure device is controlled by wave pressure switch, so as to protect car or person from
smashing.
10. Illuminated barrier boom is our patented product, with the function of decoration and caution.
11. Simply structure, runs stable and reliable.
4 Standard accessories introduction:
- 4.5 meter rail*1
- Remote Control*2
- Button*1
- Supporting rod bracket*1
- Double deck honeycomb packaging*1
5 Package Instruction:
1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box.
Packed in carton firstly, and then reinforced with export wooden case or crate for outer packing.
3. One parking barrier with two package:
a - the housing box is packed with crate
b - the rail when length exceeding 2m need to be made to the expansion link and then it will be packed
separately .
6 Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.

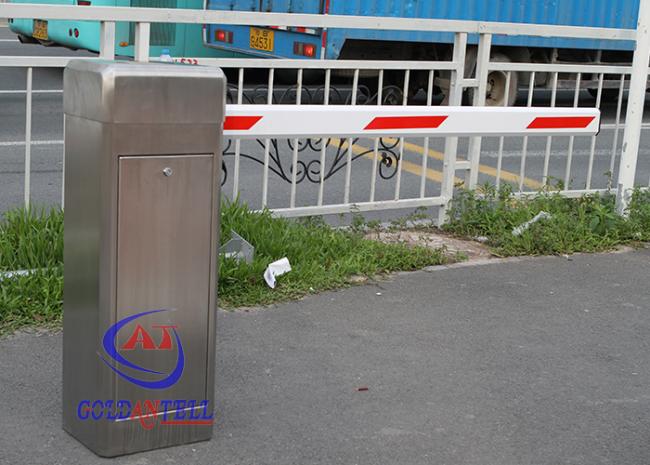

7 Boom Barrier Gate Picture:
