Reserved Intelligent Anti Theft car park lock Custom logo , 450*450*65mm

Pakring Lock Specifications
1 . Size:450*450*60mm
2 . Material:A3 steel
3 . Color:Orange,red,black(optional)
4 . Distance workable:<30m
5 . Input Voltag:DC 12V
6 . Storage Cell:12V 7AH
7 . Operating time:5-6s
8 . OEM:Custom logo,package
9 . Usage time/Once charging:3 months

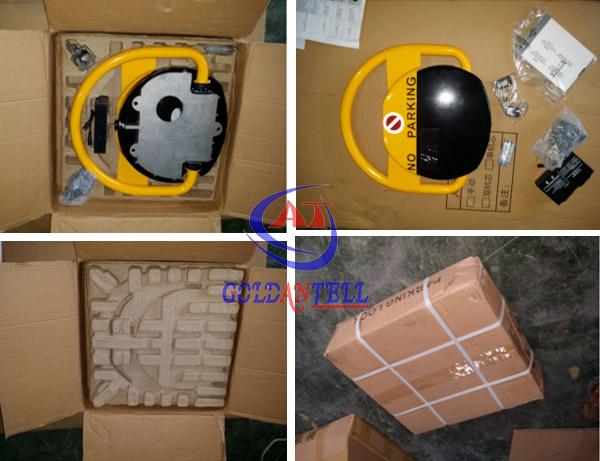

Packing List


Our Parking Lock Feafures
1 . Body of parking barrier
The cover is made of A3 steel, which can bear the greatest weight 2000KG, if you have special requirements can be modified to enhance the structure strength.
2 . Indicator light
With one indicator light in the front of the lid for show the state of operating:
a. The indicator will show a red light when the barrier is working normally.
b. The indicator will flash continually show the battery voltages is low. Pleases recharge in
time in order to extend battery's life.
3 . Crash resistance
If the barrier arm is forced down when in the upper position, the beeper will beep. When the barrier arm is released it will return to the upper position and running normally.
4 . Object sensing
The power will be cut off automatically when the parking barrier senses that excessive force is being exerted on barrier arm
5 . Energy saving
After one minute without use the barrier switches itself to the energy saving mode.
6 . Water-proof(IP54)
Processed for motor, main parts so that they have water-proof feature.
7 . Manual expatiation for emergency
If the battery voltage is too low the barrier can be manually operated.

Battery usage
1 . When the battery is fully charged, the expected use is 300 operations or approximate 3 months assuming 2 lifts and 2 downs per day.
2 . When the battery is low and dry, an audible alarm will sound to remind the owner to charge the battery. Open the control box with the key and take out of the battery, take home to re-charge. This must be plugged into 220/240 volt power. After 12 hours’ recharging, it’ll be ok.
3 . In case of an emergency and the unit is standing up and will not operate, use the hex key (supplied, it’s a good idea to leave this key and key of the main box in your car), to open the main box and to undo the screw. The pin will then be released. Remove the pin and lay the whole unit down.

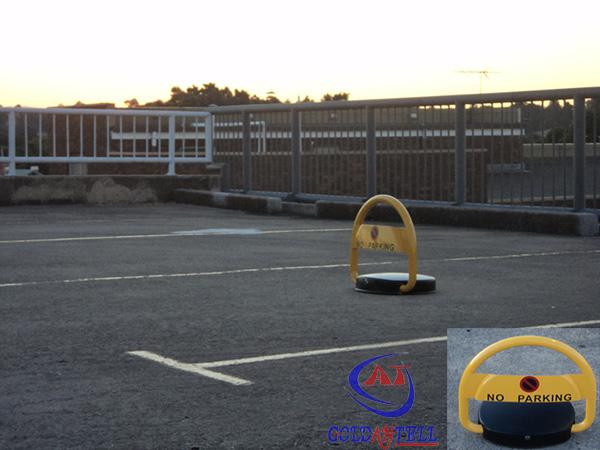

Car Parking Lock Project Pictures
