3 step installation 24GHz Breath detecting 0-10V dimming Occupancy Sensor with remote control capability
MSA246S 99 V is a 24GHz radar sensor based on Merrytek's patented orthogonal antenna. Its antenna has high gain and a wide detection range. Combined with Merrytek’s unique software algorithm and FMCW modulation, it can accurately detect micro-movements brought by humans in almost all indoor spaces to automatically turn on or turn off lighting, etc electrical appliances.
- Detect micro-movements brought by breathing
- One channel 16A relay ON/OFF output+one channel 0-10V dimming output

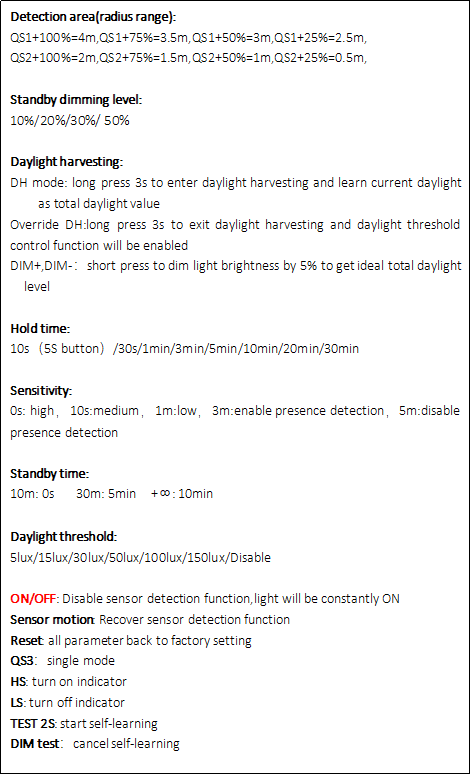

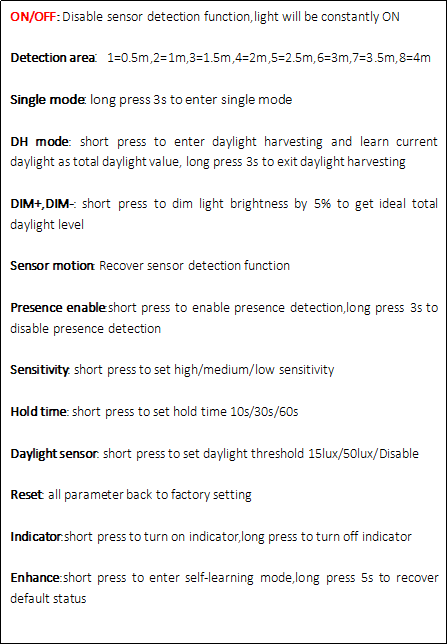

- Sensor parameters adjustable by knob switch or MH10/MH18 remote
- Not affected by temperature, humidity, noise, airflow, dust, light, and other environments
- Flush mounting and surface mounting(extra surface mounting kit needed) installation available
- 5 years warranty
| Input/Output | Input voltage | 220-240V AC 50/60Hz |
| Rated voltage | 230V AC | |
| Consumption | ≤2W @230V AC | |
| Output signal | One channel 16A relay ON/OFF+one channel 0-10V dimming | |
| Max surge voltage | 2KV(L/N,EN61000-4-5) | |
| Max surge capacity | 30A(50% Ipeak, twidth =500uS, 230Vac full load, cold start) | |
| ON/OFF channel max loading | Max 1200w resistive loading and 600w inductive loading | |
| Sensor Parameter | Sensor technology | 24GHz radar sensor+daylight sensor |
| Detection Area | Knob switch or remote setting: 0.5 m- 4 m | |
| Hold Time | Knob switch or remote setting: 10s/30s/1min/3min/5min/10min/20min/30min | |
| Standby Time | Knob switch or remote setting: 0s/10s/1min/3min/5min/10min/30min/＋∞ | |
| Standby Dim Level | 10%/20%/30%/50% | |
| Daylight Sensor Threshold | Knob switch or remote setting: 5Lux/15Lux/30Lux/50Lux/100Lux/Disable | |
| Daylight harvesting | Available, dimming range: 50%-100 % | |
| QS1+100% detection range radius | major/minor/micro movement(3m height installation): 3.5±0.5m(based on 41㎡ open area test and might change due to different space) | |
| Remote control | Available(MH10/MH18) | |
| Mounting height | 2.5- 4.0 m; typical value: 3 m | |
| Application Environment | Drill hole | Φ65mm |
| Working Temperature | 0℃...+50℃ | |
| Storage Temperature | -25℃~+50℃, Humidity ≤60%(non-condensation) | |
| Warranty | 5 years((only for product quality problem)) | |
| Certificate Standard | Certificate | CE ROHS |
| Environmental Requirement | Compliant with RoHS | |
| IP Rating | IP20 | |
| Note: "N/A" means not available. | ||
The sensor detects human walking, slight motion (such as body movement, turning the head, and other minor movements), and breathing to enable detection of human presence in non-sleep states.
- Movement signal: Large movements that trigger sensor activation within the detection area
- Slight motion signal: Very small movements including leaning forward, leaning back, body swinging, head shaking, typing, and mobile phone usage
- Breathing signal: Detection of breathing patterns through abdominal and chest cavity dilation

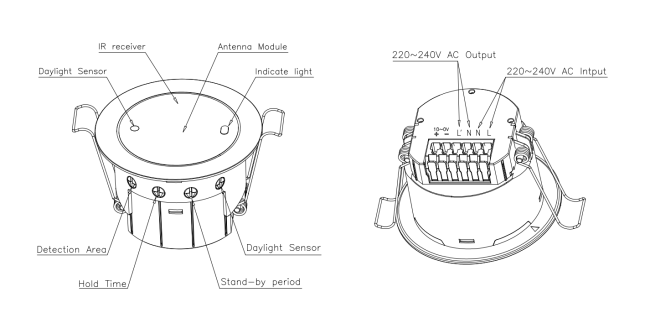

- Cut a 65mm hole in the ceiling
- Remove the crimping cover using a flat-head screwdriver
- Connect the wire to the terminal
- Install the wire cover and press the wire securely
- Bend the spring clamp backward to push into the pre-opened ceiling hole
- Ensure stable and reliable installation
- Detection range varies based on person size, material, covering thickness, and environmental factors
- Millimeter wave signals can penetrate non-metallic materials like glass and thin walls, but cannot penetrate thick load-bearing walls or metal doors
When powered on, the sensor indicator will turn off after flashing for 10S and will enter a 10S detection cycle. If presence is detected, then the sensor will report presence and enter hold time calculation; if absence is detected, then the sensor will report absence. During initialization, the sensor will not detect a moving signal, and you can use our MH10/MH18 remote or rotation switch to adjust detection area, hold time, and daylight sensor, etc. parameters.
- Detection Area: 4M
- Hold Time: 30S
- Stand-by Period: 0S
- Daylight Sensor: Disabled
- Indicator Light: Open
| Gear | Radius range |
| 1 | 0.5m |
| 2 | 1m |
| 3 | 1.5m |
| 4 | 2m |
| 5 | 2.5m |
| 6 | 3m |
| 7 | 3.5m |
| 8 | 4m |
| Gear | Hold time |
| 1 | 10s |
| 2 | 30s |
| 3 | 1min |
| 4 | 3min |
| 5 | 5min |
| 6 | 10min |
| 7 | 20min |
| 8 | 30min |
Standby Period settings:
| Gear | Standby time |
| 1 | 0s |
| 2 | 10s |
| 3 | 1min |
| 4 | 3min |
| 5 | 5min |
| 6 | 10min |
| 7 | 30min |
| 8 | +∞ |
| Gear | Daylight threshold |
| 1 | 5lux |
| 2 | 15lux |
| 3 | 30lux |
| 4 | 50lux |
| 5 | 100lux |
| 6 | 150lux |
| 7 | Disable |
*When set to disable, our sensor will turn on the light when motion is detected, regardless of the environment's daylight
1. Sensor shall be installed and wired by a professional electrician
2. There shall be no high-power electrical appliance or high-power wireless device around our sensor to avoid interference and false triggers
3. Sensor clearance shall be longer than 2m if there are many sensors in your installation room
4. The sensor shall NOT be installed on shaking objects, and there shall be NO large metal, water pipeline, air draft, or ventilation system around our sensor to avoid interference and false triggers
5. There shall be NO strong lighting around our sensor to avoid daylight sensor false detection
6. The above sensor detection area data is based on 165cm high and 65kg heavy test people walking towards the sensor in a 41㎡ open area for your reference. When the sensor is installed in a different environment with a different test person, the real detection data might differ.
