260mm AC Dimmable LED Module 12V Seoul Semiconductor 5630 LED 84pcs
260mm AC Dimmable LED Module 12V Seoul Semiconductor 5630 LED 84pcs
Quick Details:
| Name | Shape | LED info | PCB Material/Size (mm) |
Voltage V |
Driver Current mA,Max |
PF | Power (W) |
CCT (K) |
CRI | Lm/W | Remark |
| AC Module |
Square | SMD5730 84pcs |
FR4 H(1.0-1.6mm) 260*260 | 220V AC 110V AC |
/ | 0.95 | 16W | 3000K 4000K 6000K |
80 | 100-110 | Wago connector |
Description:
| Product Name: | AC-5630*84PCS | Application: | Ceiling, Down Light |
|---|---|---|---|
| CRI: | >80 | CCT: | 2700-6500k |
| Efficiency(LM/W): | 130lm/W | Input Voltage: | 110-220 AC |
| Connector: | Wago Connector |
Applications:

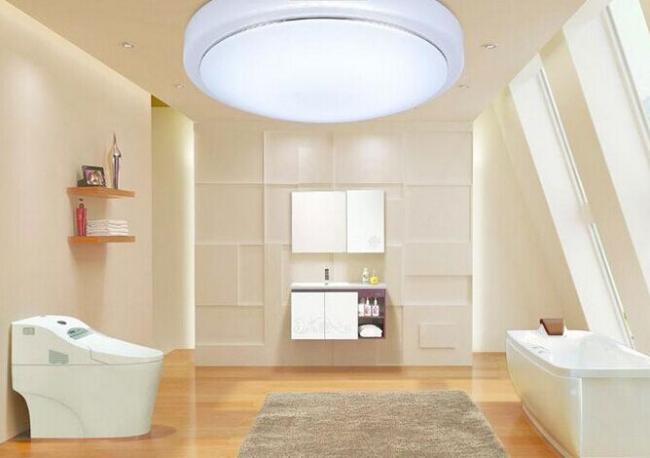

1. Ceiling lights
2. Advertisement light-box
3. Commercial luminaires
4. Channel lights
5. Troffer lamps
6. Architectural lighting
7. Decorative lighting
8. Panel lights
9. Down lights
Description
Ø Ideal for Down lights, Lowbay,Ceiling
Ø Module efficiency up to 140lm/W
Ø Colour tolerance 5 steps
Ø High colour rendering index CRI > 80(3000K,4000K),CRI>70(6000K)
Ø Push terminals for quick and simple wiring Simple installation (e.g. screws)
Technical Date
Ø Operating module at 300mA
|
Order Code |
-mA |
VV |
CCT -K |
Flux -lm |
CRI |
Typ.Efficiency lm/W |
|
RL-TOC88DA1008C-830 |
300 |
28-29.5 |
3000 |
1000 |
80 |
125 |
|
RL-TOC88DA1008C-840 |
300 |
28-29.5 |
4000 |
1050 |
80 |
135 |
|
RL-TOC88DA1008C-760 |
300 |
28-29.5 |
6000 |
1150 |
70 |
140 |
Ø Operating module at 350mA
|
RL-TOC88DA1008C-830 |
350 |
29.5-31 |
3000 |
1150 |
80 |
120 |
|
RL-TOC88DA1008C-840 |
350 |
29.5-31 |
4000 |
1250 |
80 |
130 |
|
RL-TOC88DA1008C-760 |
350 |
29.5-31 |
6000 |
1350 |
70 |
135 |
