Single Sided Cantilever Storage Racks 200 - 2000kg Loading Capacity Per Level

Price Negotiable

Price: Depends on the size of racks

MOQ: 15pcs

Delivery Time: 20 working days after received your payment

Brand: Generalization

Product Description

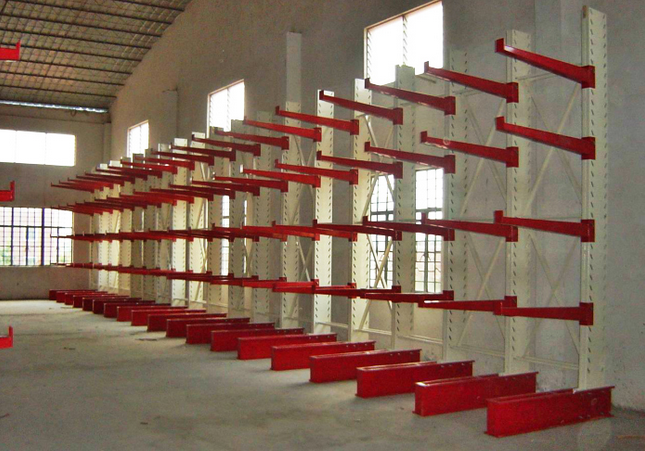

Heavy Duty Cantilever Storage Racks with 200-2000kg per level

Technical characteristics Cantilever racking

The column and foot are welded or bolted together.
The cantilever racks can be used single or double sided.
Column heights of up to 5 meter, perforated every 75mm.
The Cantilever racking is suitable for forklift and crane handling.
Ground guidance can be provided as an option.
The beams are bolted and adjustable per 100mm, corresponding with the sizes of the stored goods.
Arm lengths of our Cantilever racking range from 600 to 1200mm.

Product Name	Cantilever Racking System
Unit Bay Standard Specification Extra Bay Added × W1200mm (Customized Sizes Available)	Single Sided	Double Sided
	W1200×D600×H2500mm	W1200×D1200×H2500mm
	W1200×D1000×H3000mm	W1200×D2000×H3000mm
	W1200×D1200×H3600mm	W1200×D2400×H3600mm
	W1200×D1500×H4800mm	W1200×D3000×H4800mm
Cantilever Rack Levels	2 levels, 3 levels, 4 levels, 5 levels......11levels
Arm Length	600mm, 1000mm, 1200mm, 1500mm
Arm Load Capacity	300KG---2500KGper arm
Raw Material	high quality cold rolling steel Q235B(SS400) purchased from Shanghai Baosteel Group
Material Thickness	1.5mm, 1.8mm, 2.0mm, 2.5mm
Surface Treatment	deoil, derusting and powder coat paint finish
Rack Colors	standard blue, orange and customized available
HS Code	7308900000

Competitive Advantage:

We are the professional manufacturer of warehouse racking in China .

All products have detected by SGS andAS4084 quality certification.All the rack that we

produce is customized , We will be happy to give you a quotation receipt of

your detailed requirements.

Please inform us the listed information in your inquiry for quick quotation:

A) The warehouse sketch

B) The size of cantilever rack (length*width*height)
C) How many bays you want
D) How many layers you want
E) The loading capacity of each layer
F) The color you want

We have tested the loading capacity of each arm. The result is that 2500kg/arm is no problem. The height we can make is 5 meters.
