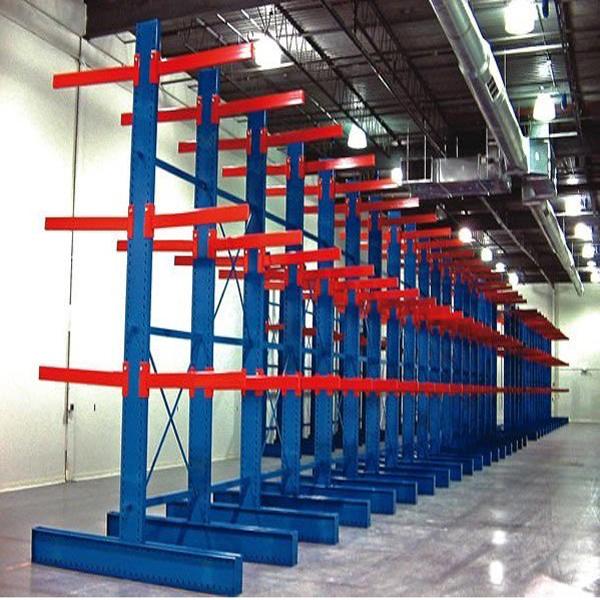

New Pattern Cantilever Metal Racks , Heavy Shelves Industrial Cantilever Racks
New Pattern Low Cost Used Heavy Shelves Cantilever Storage Racks
Product Description:
Designed to maximize your storage space while giving you easy access to your products. With Cantilever racking you can work by the safest storage practices. The Cantilever racking system is ideal for storing your long, irregular and mixed loads.
Technical characteristics Cantilever racking:
The column and foot are welded or bolted together.
The cantilever racks can be used single or double sided.
Column heights of up to 5 meter, perforated every 75mm.
The Cantilever racking is suitable for forklift and crane handling.
Ground guidance can be provided as an option.
The beams are bolted and adjustable per 100mm, corresponding with the sizes of the stored goods.
Arm lengths of our Cantilever racking range from 600 to 1500mm.
| Specifications of Beam | |||||
| Type | Item | Height(mm) | Width(mm) | Thickness(mm) | |
| P style Pipe(Step Beam) | 1 | 50 | 30 | 1.5 | |
| 2 | 60 | 40 | 1.5 | ||
| 3 | 80 | 50 | 1.5 | ||
| 4 | 110 | 70 | 1.5 | ||
| 5 | 140 | 70 | 1.5 | ||
| 6 | 160 | 70 | 1.5 | ||
| Box Beam | 7 | 80 | 50 | 1.5 | |
| 8 | 100 | 50 | 1.5 | ||
| 9 | 110 | 50 | 1.5 | ||
| 10 | 120 | 50 | 1.5 | ||
| 11 | 140 | 50 | 1.8 | ||
| 12 | 160 | 50 | 2.0 | ||
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse layout plans
B) The size of racking(length*width*height)
C) How many bays you want
D) How many layers for each bay that you want
E) The loading capacity of each layer
F) Choose steel panel or wooden veneer
G) The RAL color you want
We have tested the loading capacity of each arm. The result is that 2500kg/arm is no problem. The height we can make is 5 meters.
