One cylinder Clamshell Grapple bucket for Komatsu PC360 telescopic boom

Description:

Clamshell Grapple bucket is multi-fuction attachment for excavators,it's very popular in dredging,

loading,unloading,excavating works.

We can design and customize all kinds of Clamshell Grapple buckets according to your requirements.

1. Available in various width to suit projects' requirements.

2. Rotate or Non-rotate are seclectable.

3. Can be two cylinder style or one big cylinder style. One big cylinder clamshell is usually fit on telescopic boom for digging depth.

4. We can supply the extra pipeline together if you choose the rotating clamshell bucket.Since your excavator usually has one spare distribution valve , so you don't need a extra valve to get oil out from excavator main pump for clamshell bucket.

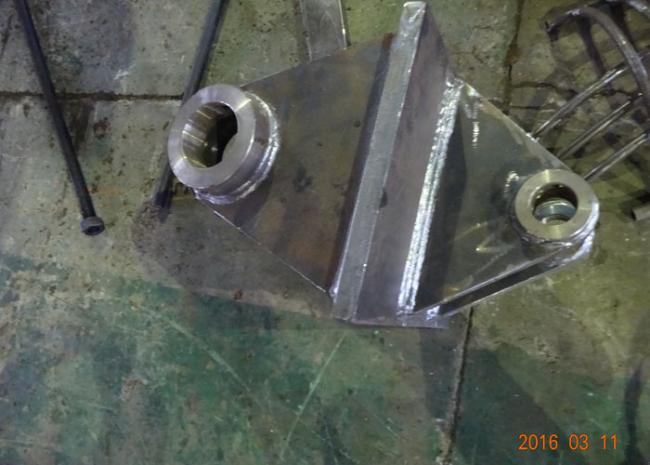

5. For this clamshell bucket,we supply a special joint,so the clamshell bucket can sway to both Left/Right and Front/Back.Enlarge the work range in operation

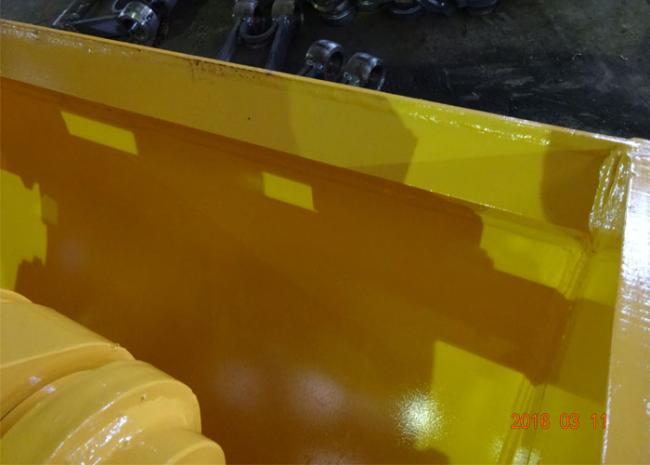

6. the edge of the calmshell grapple bucket is reinforced

7. Tooth or No Tooth is selectable.

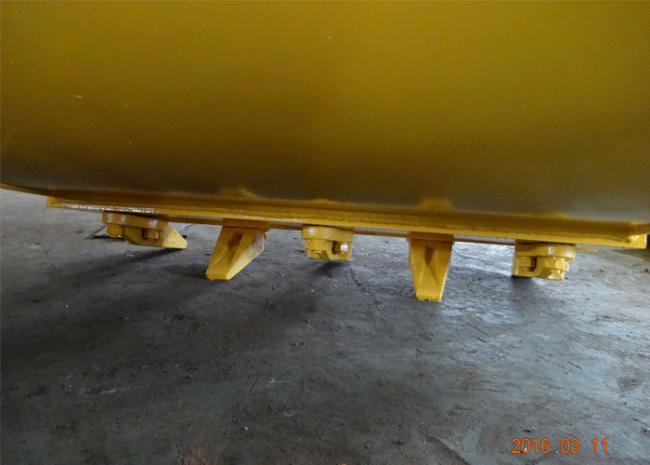

  This clamshell grapple have tooth,so easy for excavating.

Specification:

Application:

- We produce this clamshell grab bucket together with a telescopic arm for our domestic customer

- customer use it for subway construction.

- excavating and lifing soil out from 20 meter depth under ground.

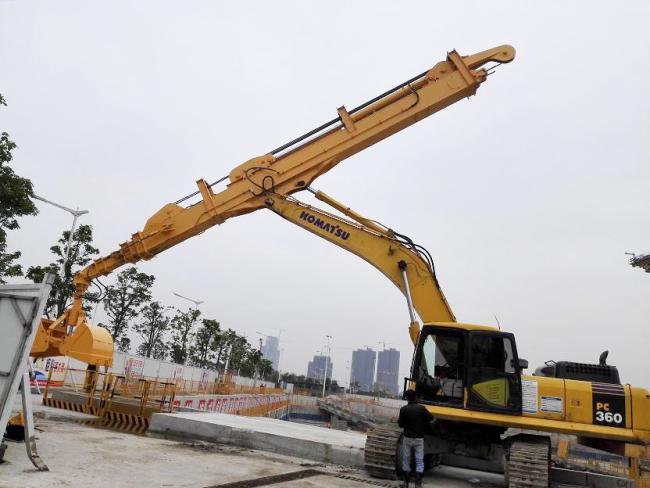

Working pictures:
