2500mm Open Q345B Hardox450 Excavator Rock Grab For Komatsu PC400LC
Excavator Heavy Duty Rock Grab for Komatsu PC400LC
Description:
1, Simple structure, easy to operate and installation. It's driven by excavator bucket cylinder, don't need extra pipes. Also can suit for quick hitch. It's popular in multi-excavators which need to deal all kinds of different works.
2, Driven by the bucket cylinder. Closing and opening is controlled through the bucket cylinder.
3, It is heavy duty type.
4, Mechanical Excavator Grapple is high efficiency in grabbing, loading, unloading, sifting, etc.
5, The joint made with quick hitch design, convenient to install.

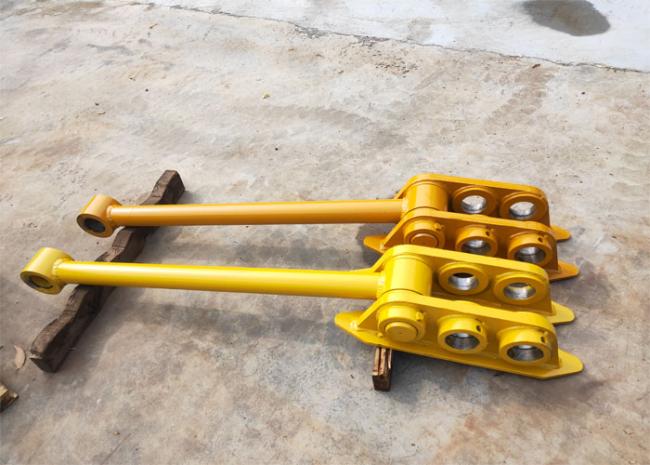

6, All this kind of mechanical grapple was include the support rod and base, the base will be welded on excavator stick to fix the bottom-jaw of Grapple.
7, The main boby is Q345B, tine part is Hardox450 material. More better for bad working conditions.
8, Five tine structure. One side is 2 tines, other side is 3 tines.

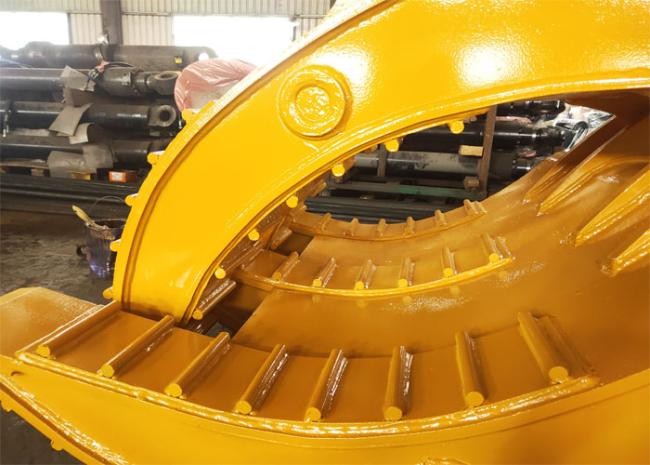

9, Welded the reinforce plate at grab inside, made the grabs more durable.
10, Was included the suppoting bar.
11, According to your project requirements,we can design the different shape main body for you.
12, This grab was exported to Jebel Ali, total 6pcs.
13, Because don't have hydraulic system, mechanical grapple price usually is more cheaper than hydraulic grapple.
Specification:
| Excavator Model | Komatsu PC400LC |
| Max open | 2500 mm |
| Self weight | 1893 kg |
| Material | Q345B + Hardox450 |
| Type | Heavy duty type |
| Support rod | Include |
| Warranty | 6 months |
Application:
- grabbing
- Loading & Unloading
- Sorting
- Good attachments for Multi-excavators.
Picture:
