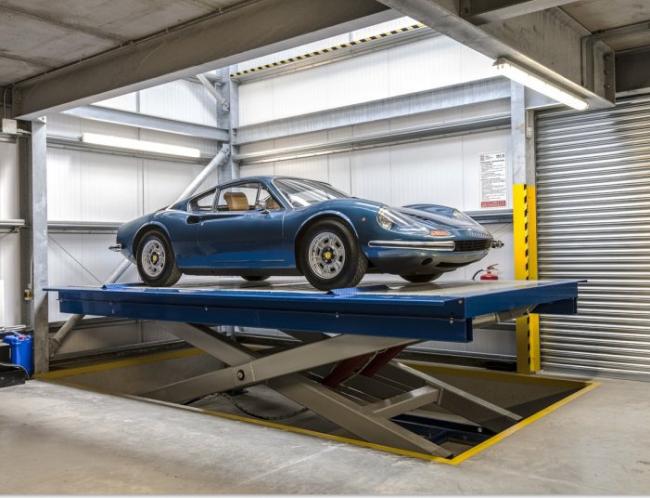

Automotive Hydraulic Scissor Lift For Basement Garage Parking 1 Or 2 Cars
hydraulic scissor car lift for basement garage parking with CE
Description:
The electric hydraulic scissor car lift is a widely used car lift equipment. It's scissor structure, makes the lifting platform stability, big platform size and high bearing capacity. It makes a lot work more efficient and more security. It parks your car in the upstairs more efficient and security.
Product parameters:
1) load capacity : 5000kgs
2) platform size : 5.6m x 2.6m
3) travel height : 3m
4) structure : high-strength Manganese steel
5) power : 380v/3ph/50hz/4.0kw
6) Installation : underground , into a pit
Safety:
1) The work platform equipped with anti-skid plate to prevent slipping for safe.
2) The work table can be equipped guardrails to guarante safety of the car.
3) The car lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
4) The car lift equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.
The models we supplied for clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1050mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 950mm | 220V, 240V, 380V or 400V |
|
The Hydraulic Scissor Car Lift can be customized as your detailed size.
|
|||||
The customers visiting:

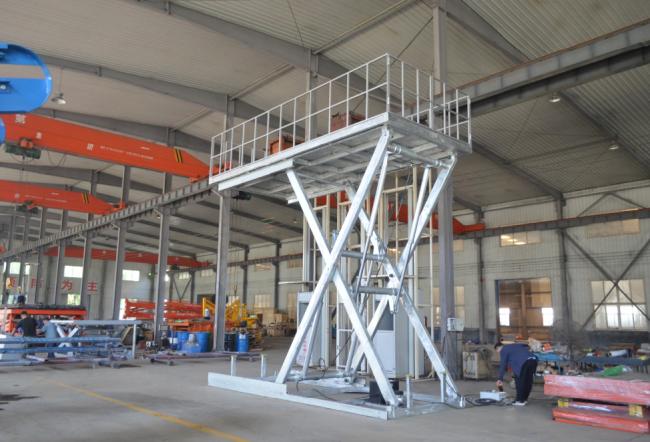

Our workshops:
