Double Deck Hydraulic Car Scissor Auto Lift For Basement Car Parking
CE certified double deck hydraulic car scissor auto lift for basement car parking
Double deck scissor lift is an ideal car lift solution for fast and easy access underground garage.
Installed to replace an access ramp on private property, double deck scissor lifts are specially used for day to day residential application
as a solution for maximizing available space, storing automobiles, and providing security for exclusive and/or seasonal vehicles.
It’s also perfect for commercial parking operations looking to maximize their overall vehicle capacity.
Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw or as your requests.
4) High Precision Hydraulic Cylinder.
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform

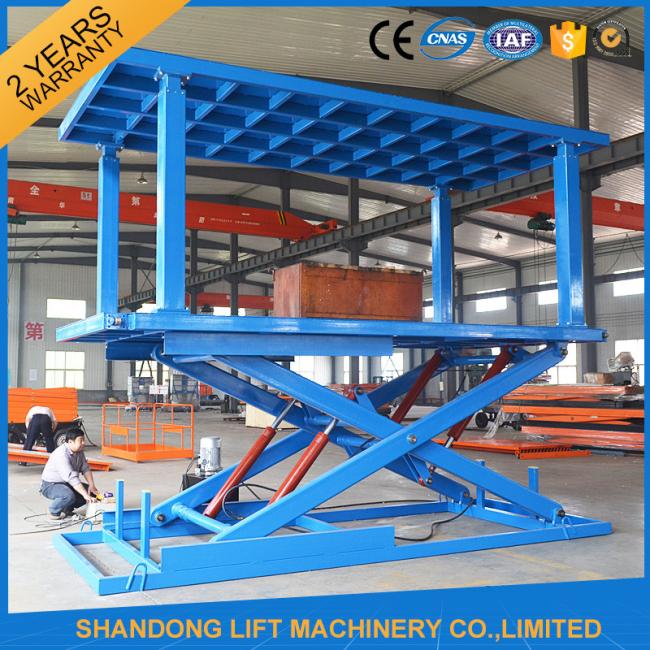

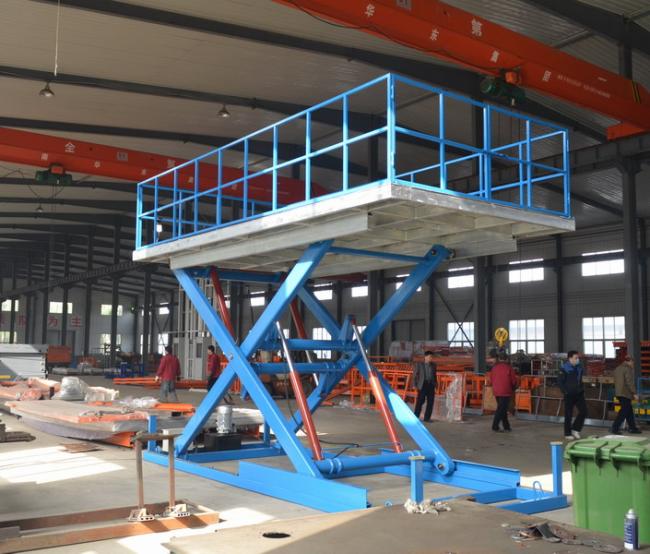

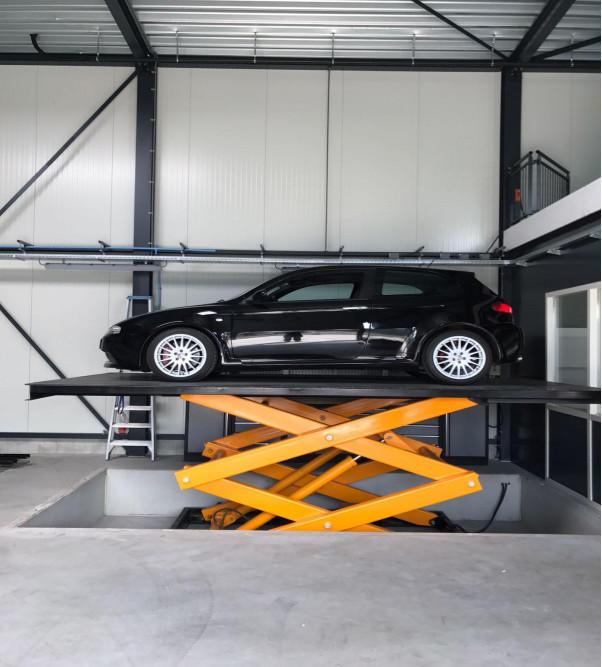

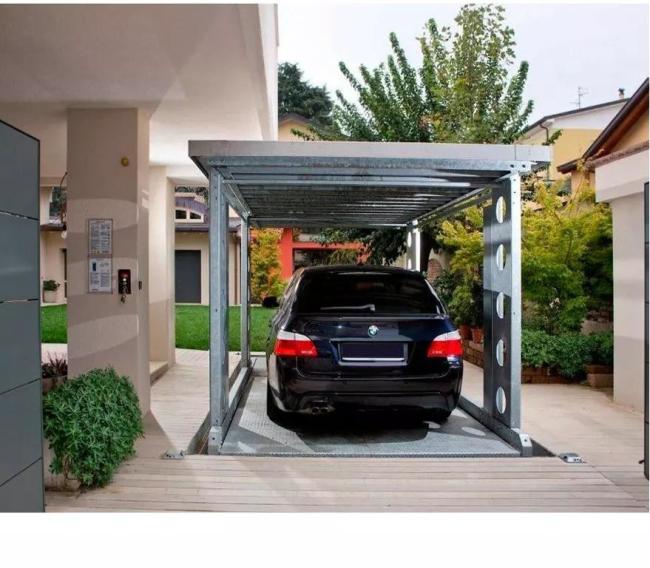

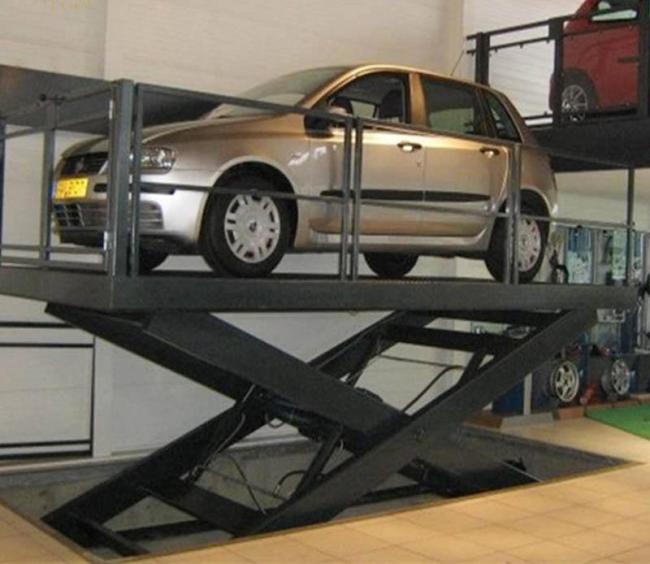

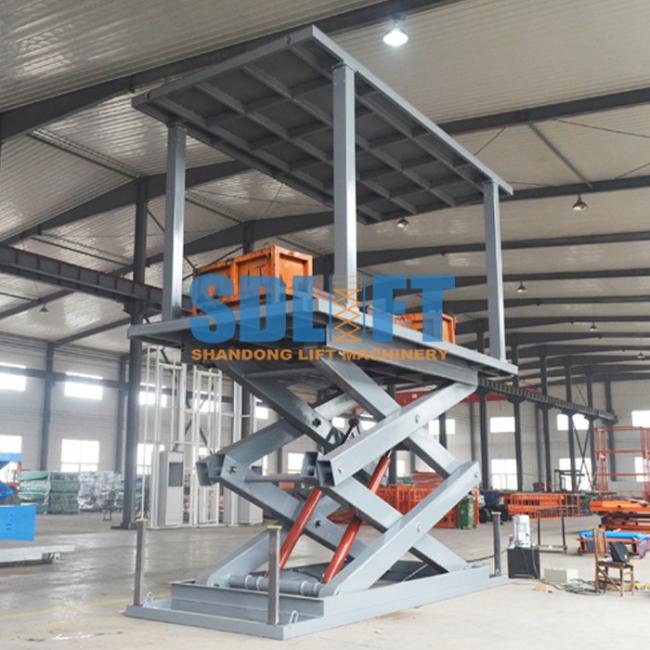

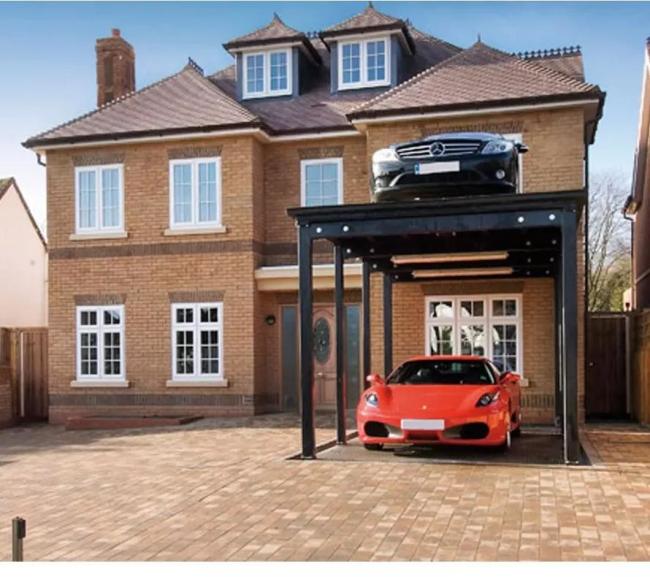

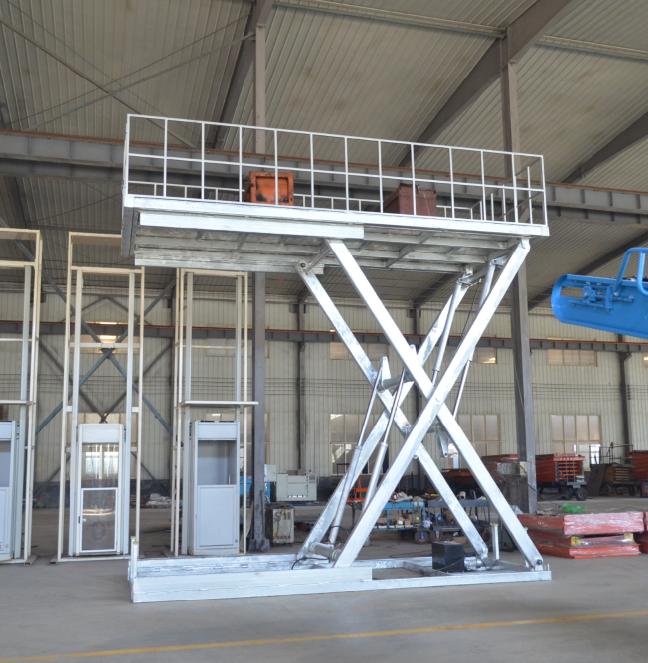

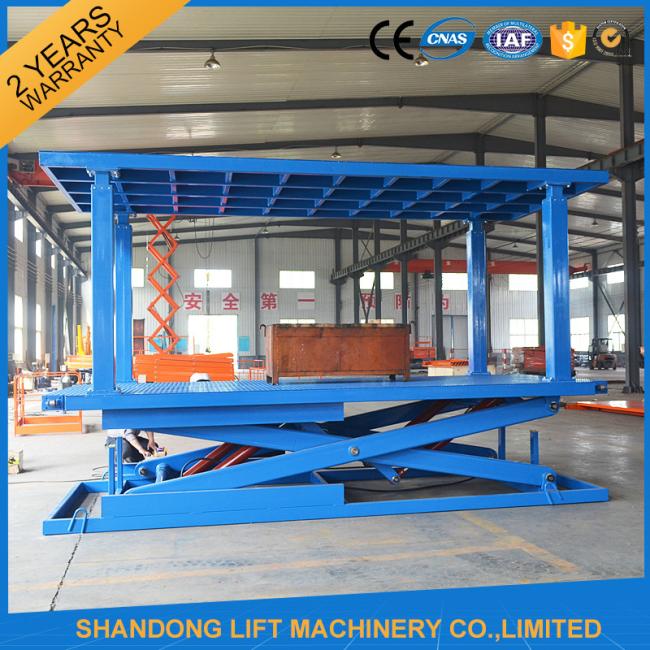

Products showing:
CE certificate :
| Model | load capacity | Platform size | Lift height | Pit depth | Power |
| SJG2.5-3 | 2.5T | 5.2m×2.6m | 3m | 750mm | 220v, 240v,380v or 400v |
| SJG2-6.5 | 2T | 5.2m×2.8m | 6.5m | 800mm | 220v, 240v,380v or 400v |
| SJG2.5-3.5 | 2.5T | 5.2m×2.6m | 3.5m | 800mm | 220v, 240v,380v or 400v |
| SJG2.5-5 | 2.5T | 5.6m×3m | 5m | 800mm | 220v, 240v,380v or 400v |
| SJG3-2.5 | 3T | 5m×2.3m | 2.5m | 750mm | 220v, 240v,380v or 400v |
| SJG3-3 | 3T | 5.2m×2.6m | 3m | 800mm | 220v, 240v,380v or 400v |
| SJG3-3.5 | 3T | 5.6m×2.7m | 3.5m | 800mm | 220v, 240v,380v or 400v |
| SJG5-10 | 5T | 4.5m×2.5m | 10m | 1150mm | 220v, 240v,380v or 400v |
| SJG8-2.5 | 8T | 6.5m×4.5m | 2.5m | 850mm | 220v, 240v,380v or 400v |
| SJG12-3 | 12T | 5.5m×2.8m | 3m | 950mm | 220v, 240v,380v or 400v |
| SJG15-4.5 | 15T | 8m×2.2m | 4.5m | 1150mm | 220v, 240v,380v or 400v |
| SJG20-5 | 20T | 6m×3m | 5m | 1200mm | 220v, 240v,380v or 400v |
Our service:
1) We can design the customerized scissor car auto lift as per your requirement.
2) The scissor car auto lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
