Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Product Description
The scissor car lift is an ideal car lift solution for fast and easy access underground garage.
Installed to replace an access ramp on private property, double deck scissor lifts are specially used for day to day residential application
as a solution for maximizing available space, storing automobiles, and providing security for exclusive and/or seasonal vehicles.
It’s also perfect for commercial parking operations looking to maximize their overall vehicle capacity.
Parameters:
- load capacity : 2500kgs
- platform size : 5.2m x 2.6m
- travel height : 3m
- structure : high-strength Manganese steel
- power : 380v/3ph/50hz/5.5kw
- Installation : underground , into a pit
| Model | load capacity | Platform size | Lift height | Pit depth | Power |
| SJG2.5-3 | 2.5T | 5.2m×2.6m | 3m | 750mm | 220v, 240v,380v or 400v |
| SJG2-6.5 | 2T | 5.2m×2.8m | 6.5m | 800mm | 220v, 240v,380v or 400v |
| SJG2.5-3.5 | 2.5T | 5.2m×2.6m | 3.5m | 800mm | 220v, 240v,380v or 400v |
| SJG2.5-5 | 2.5T | 5.6m×3m | 5m | 800mm | 220v, 240v,380v or 400v |
| SJG3-2.5 | 3T | 5m×2.3m | 2.5m | 750mm | 220v, 240v,380v or 400v |
| SJG3-3 | 3T | 5.2m×2.6m | 3m | 800mm | 220v, 240v,380v or 400v |
| SJG3-3.5 | 3T | 5.6m×2.7m | 3.5m | 800mm | 220v, 240v,380v or 400v |
| SJG5-10 | 5T | 4.5m×2.5m | 10m | 1150mm | 220v, 240v,380v or 400v |
| SJG8-2.5 | 8T | 6.5m×4.5m | 2.5m | 850mm | 220v, 240v,380v or 400v |
| SJG12-3 | 12T | 5.5m×2.8m | 3m | 950mm | 220v, 240v,380v or 400v |
| SJG15-4.5 | 15T | 8m×2.2m | 4.5m | 1150mm | 220v, 240v,380v or 400v |
| SJG20-5 | 20T | 6m×3m | 5m | 1200mm | 220v, 240v,380v or 400v |
- Save space : the scissor automotive lift consumes no space when not in use, it’s an ideal option for small work spaces as well as large.
- Safe: explosion-proof lock valve to avoid a sudden drop if emergency occurs.
- The lift is fitted with protective side barriers to secure the car during elevation and descent.
- Each car lift comes equipped with handrails, a kick plate, and a barrier chain across each end.
- The platform is equipped with overload alarm and partial load protection device to ensure the safe lifting of the platform
- The hydraulic system is equipped with an explosion-proof valve to prevent the platform from falling due to rupture of the oil cylinder
- Manual lowering device after power failure
- Scissor arms are made of high-strength manganese steel: high strength, no deformation, to ensure long-term safety

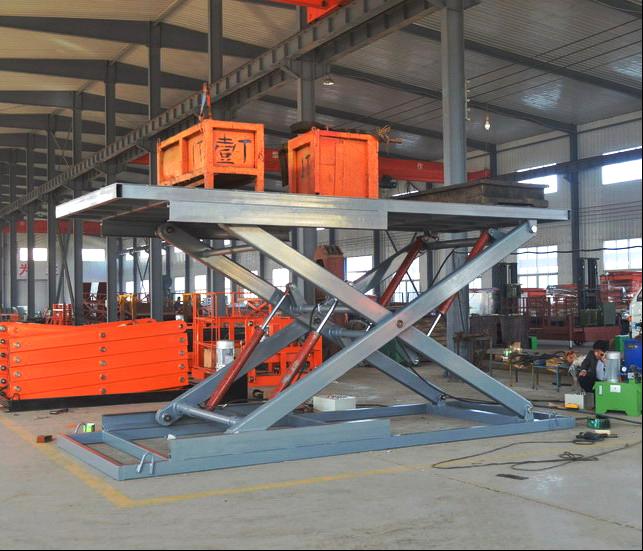

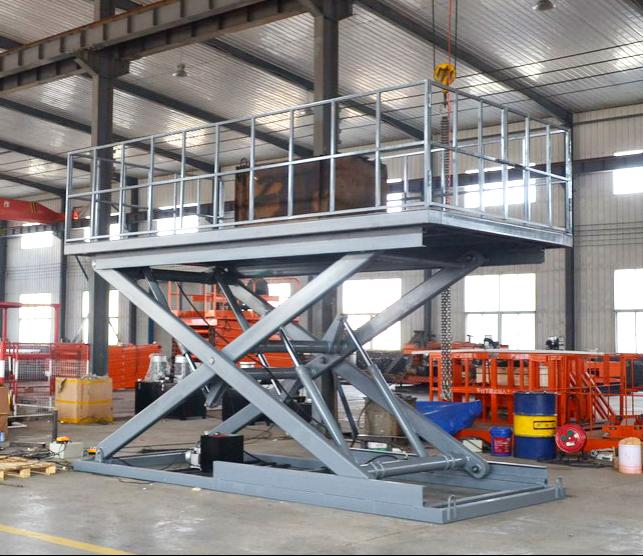

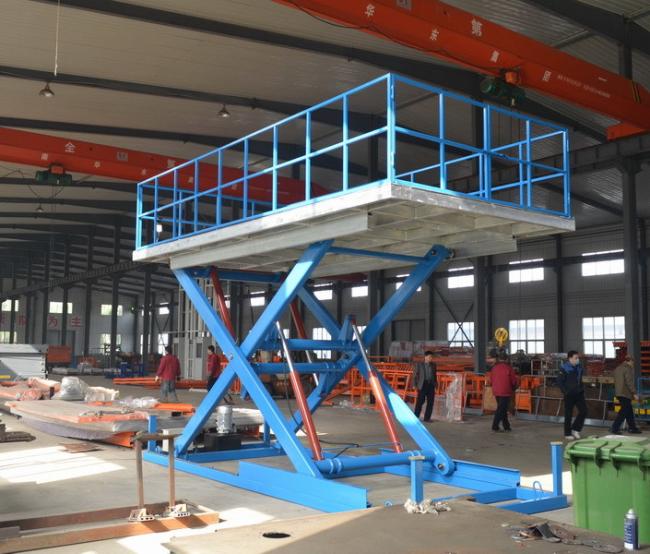

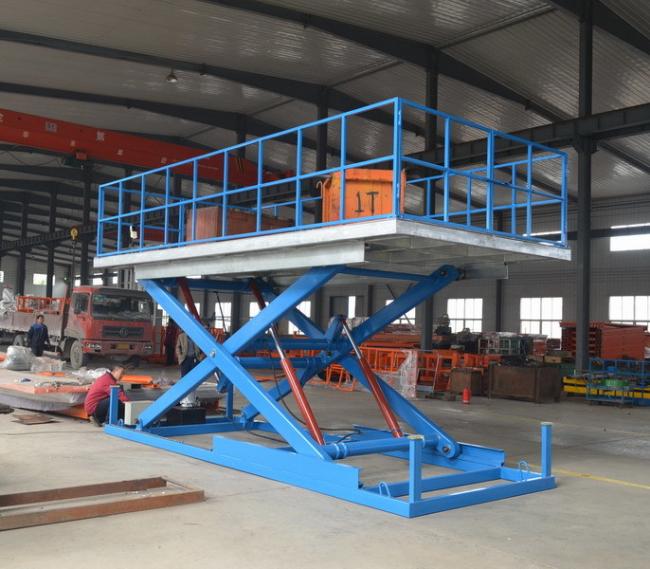

Production showing:
