Warehouse Stationary Hydraulic Scissor Lift  for Material Loading

with 4.8m Height:

Application:

The stationary hydraulic scissor lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.

Operation is easy. There are 2 sets control system installed on the lift, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.

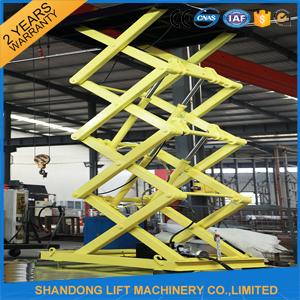

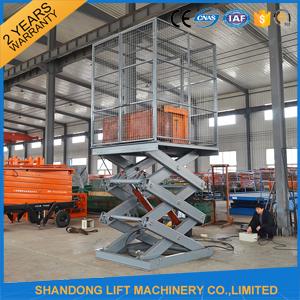

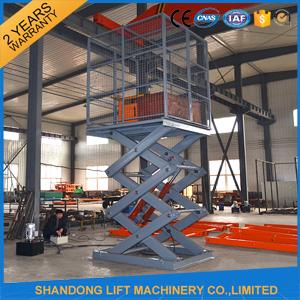

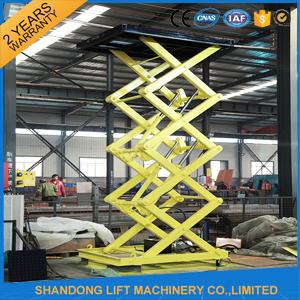

Production pictures:

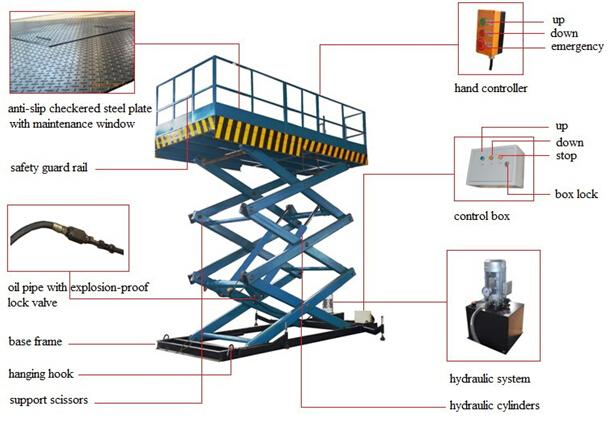

Configuration:

1) Lifting capacity: 1000kgs

2) Lifting height: 4800mm

3) Platform size: 2000mm x 1600mm

4) Platform Material:120mm*60mm rectangular tube +3mm checkered anti-slip plate
5) Support scissors: 160mm*80mm*6mm high strength Manganese Steel.
6) Hydraulic system: 380V/3.0Kw or 220v or as your request
7) Hydraulic cylinder: 80*4sets high precision wear-resisting cylinders with locking device
8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box below, 1 hand controller above platform

The frequent models we supplied for our clients:

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above lift platform.
3) Equipped 4 guide rails, to ensure the stationary hydraulic scissor lift runs more smoothly and steadily.
4) The limit switch system helps the stationary hydraulic scissor lift to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the stationary hydraulic scissor lift are passed 1.2 times loading test before leaving factory.

Our Certificates:

Our Services:

• User-friendly English manual for machine installation using and maintenance.
• 2 year warranty for whole machine without man-made faults.
• 2 sets spare parts as additional and free for you together with lift in shipment.
• We will send you parts for free if there are any non-human factors faults during warranty time.
• Supply 24-hours technical assistance by email, telephone or other communication online.
• We could reply you in 2 hours after received your any questions even on weekend and holiday.
• Engineers are available to your country if necessary.
