500kgs Hydraulic Hydraulic Lift Table Mobile Aerial Work Platform with 4 Wheels 8m Lifting Height
8m 500kgs Hydraulic Mobile Work Platform Lift Mobile Aerial Work Platform for Maintenance:
1. It can be moved conveniently, and has bigger platform, bigger lifting capacity to take several people to work on it together.
2. This type mobile platform lift is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
Application:
1. Pointing control of lifting up and down.
2. Manganese steel lifting arm in high strength with rectangle shape
3. Anti-skid floor in platform
4 The control panels are available on the platforms and ground.
5. Fine grinding cylinder in good sealing performance
Model:
|
Model |
Platform size |
Loading capacity |
Lifting height |
Overall dimension mm |
Self-weight Kg |
|
Loading capacity : 300KG |
|||||
|
SJY0.3-4 |
2100*820mm |
300kg |
4m |
2200*980*1100 |
750 |
|
SJY0.3-6 |
2100*820mm |
300kg |
6m |
2200*950*1200 |
850 |
|
SJY0.3-7 |
2100*820mm |
300kg |
7m |
2200*950*1280 |
900 |
|
SJY0.3-8 |
2100*900mm |
300kg |
8m |
2200*1060*1380 |
1050 |
|
SJY0.3-9 |
2100*900mm |
300kg |
9m |
2200*1060*1500 |
1200 |
|
SJY0.3-10 |
2100*1200mm |
300kg |
10m |
2200*1350*1530 |
1450 |
|
SJY0.3-11 |
2100*1200mm |
300kg |
11m |
2200*1400*1650 |
1650 |
|
SJY0.3-12 |
2550*1500mm |
300kg |
12m |
2720*1670*1750 |
2400 |
|
SJY0.3-14 |
2550*1500mm |
300kg |
14m |
2800*1800*1950 |
2750 |
|
SJY0.3-16 |
3070*1600mm |
300kg |
16m |
3250*1800*1920 |
3400 |
|
SJY0.3-18 |
3070*1600mm |
300kg |
18m |
3250*1800*2080 |
3600 |
|
Loading capacity : 500KG |
|||||
|
SJY0.5-4 |
2100*800 |
500 |
4m |
2200*1100*1300 |
830kg |
|
SJY0.5-6 |
2100*800 |
500 |
6m |
2200*1100*1300 |
900kg |
|
SJY0.5-7 |
2100*800 |
500 |
7m |
2200*1100*1350 |
950kg |
|
SJY0.5-8 |
2100*900 |
500 |
8m |
2200*1200*1450 |
1100kg |
|
SJY0.5-9 |
2100*900 |
500 |
9m |
2200*1200*1500 |
1260kg |
|
SJY0.5-10 |
2100*1200 |
500 |
10m |
2200*1400*1550 |
1500kg |
|
SJY0.5-11 |
2100*1200 |
500 |
11m |
2200*1400*1700 |
1700kg |
|
SJY0.5-12 |
2550*1500 |
500 |
12m |
2800*1800*1750 |
2480kg |
|
SJY0.5-14 |
2550*1500 |
500 |
14m |
2800*1800*1750 |
2800kg |
|
SJY0.5-16 |
3220*1650 |
500 |
16m |
3600*1950*2200 |
4500kg |
|
SJY0.5-18 |
3220*1650 |
500 |
18m |
3600*1950*2400 |
4800kg |

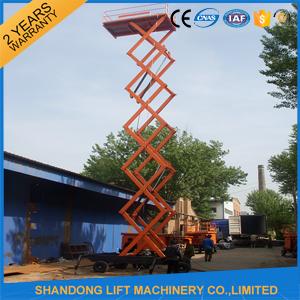

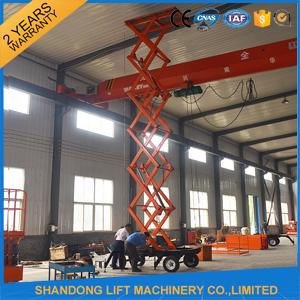

Products Show:
The customers visiting:
The Certificates:
Our Services:
1) We can design the customerized mobile scissor lift as per your requirement.
2) The most suitable mobile scissor lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
