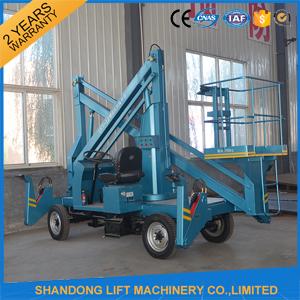

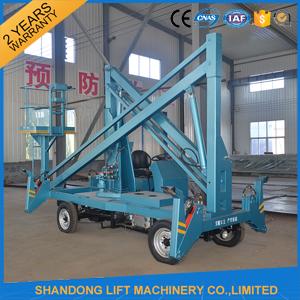

Commercial Hydraulic Articulated Trailer Boom Lift Rental , 8m Rotating Truck Mounted Aerial Lift
8m Commercial Hydraulic Articulated Rotating Trailer Mounted Boom Lift Boom Lift for Repair:
Product Description:
1. Introduce
1. It is used for maintenance or aerial work, can also move a short distance..
2. One person drive and another person operate on the platform.
3. It can move upside and down automatically, be operated both in the up basket and down drive seat
2. Advantages
1. Two sources of power:Storage battery and Diesel engine.And the storage battery works without noise.
2. With four full-automatic hydraulic legs,it can be more stable.
3. Boom rotation 360°, so it can work across the barriers.
3. Model list
|
Model |
SJY0.2-8 |
SJY0.2-10.5 |
SJY0.2-12.5 |
SJY0.2-13.5 |
|
Max.work height(m) |
10 |
12.5 |
14.5 |
15.5 |
|
Platform height (m) |
8 |
10.5 |
12.5 |
13.5 |
|
Max.horizontal extent(m) |
2.5 |
2.5 |
3.8 |
4.2 |
|
Rotation |
360° |
360° |
360° |
360° |
|
Platform capacity(kg) |
200 |
200 |
200 |
200 |
|
Size (mm) |
3800*1900*2800 |
3800×1900×3000 |
4800×2100×3050 |
5100×2200×3250 |
|
Total weight(kg) |
1250 |
1360 |
1800 |
1900 |
|
Lifting speed(m/s) |
0.05-0.09 |
0.05-0.09 |
0.05-0.09 |
0.05-0.09 |
|
Work pressure(kpa) |
10 |
10 |
10 |
10 |
|
Travel speed(km/h) |
15-30 |
15-30 |
15-30 |
15-30 |
|
Wind-proof |
≤5 |
≤5 |
≤5 |
≤5 |
Pictures:
5. Controller
There are "up I", "up II", "down I", "down II", "right rotation", "left rotation" buttons on the control panel,
and it is easy to operate the lift.
6. Hydraulic cylinder
We use original import or domestic joint venture hydraulic cylinder, cylinder material is 45 # high-quality
carbon steel, with a leather working strength, impact resistance, not magnetic characteristics, with high
quality, improving the reliability and prolonging the use life.
7. Legs
With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.
8. Diesel engine
The lift is driven by diesel engine, whose brand is Changchai, it is first class in China. And the platform
is also lifted up and down by the diesel engine. As power source, the diesel engine has powerful power,
and strong climbing capacity. Furthermore, we can also use storage battery to make the lift up and
down.
9. Customer Visiting:
FAQ
1. Delivery time
Within 30 working days after we receive the order
2. Payment terms
T/T, L/C, Western Union,paypal, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
Shandong Lift can be custom-made, load capacity, lifting height, color etc.
Our Services
1. All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. 24 Hours technical support, email, telephone or video online
4. User-friendly english manual for machine using and maintaining
5. Sereral sets wearing parts will be free for you
