Electric Hydraulic Mobile Platform Lift for Aerial Work / Decoration / Street Lamp Maintenance
CE Mobile Scaffolding Lift Electric Hydraulic Scaffolding With 2 Years Warranty:
Product Description:
The Mobile Scaffolding Lift Electric Hydraulic Scaffolding is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above work platform.
3) The limit switch system helps the Mobile Scaffolding Lift Electric Hydraulic Scaffolding to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Mobile Scaffolding Lift Electric Hydraulic Scaffoldings are passed 1.2 times loading test before leaving factory.
Product List:
|
Model |
Capacity |
Table size |
Max height |
Work height |
Total dimension |
Net weight |
|
SJY0.3-4 |
300Kgs |
1500×750mm |
4m |
5.7m |
1850×900×1900mm |
400Kgs |
|
SJY0.3-6 |
300Kgs |
1500×750mm |
6m |
7.7m |
1850×900×1970mm |
650Kgs |
|
SJY0.3-8 |
300Kgs |
1650×1000mm |
8m |
9.7m |
2100×1200×2460mm |
1200Kgs |
|
SJY0.5-8 |
500Kgs |
1980×1220mm |
8m |
9.7m |
2500×1550×2380mm |
1400Kgs |
|
SJY0.8-8 |
800Kgs |
2000×1220mm |
8m |
9.7m |
2600×1550×2640mm |
1700Kgs |
|
SJY0.3-10 |
300Kgs |
2100×1220mm |
10m |
11.7m |
2700×1550×2380mm |
1500Kgs |
|
SJY0.5-10 |
500Kgs |
2100×1220mm |
10m |
11.7m |
2700×1550×2380mm |
1600Kgs |
|
SJY1.0-10 |
1000Kgs |
2220×1220mm |
10m |
11.7m |
2820×1720×2850mm |
2380Kgs |
|
SIY0.3-12 |
300Kgs |
2550×1500mm |
12m |
13.7m |
3150×1860×2850mm |
2580Kgs |
|
SIY0.5-12 |
500Kgs |
2550×1500mm |
12m |
13.7m |
3150×1860×2850mm |
2780Kgs |
|
SJY1.0-12 |
1000Kgs |
2600×1500mm |
12m |
13.7m |
3200×2015×3090mm |
3580Kgs |
|
SJY0.3-14 |
300Kgs |
2990×1600mm |
14m |
15.7m |
3600×2000×2850mm |
3000Kgs |
|
SJY0.5-14 |
500Kgs |
2990×1600mm |
14m |
15.7m |
3600×2000×2850mm |
3200Kgs |
|
SJY0.3-16 |
300Kgs |
3230×1600mm |
16m |
17.7m |
3700×2000×3030mm |
3900Kgs |
|
SJY0.3-18 |
300Kgs |
3230×1600mm |
18m |
19.7m |
3700×2000×3250mm |
4500Kgs |
|
SJY0.3-20 |
300Kgs |
3230×1600mm |
20m |
21.7m |
3700×2000×3450mm |
5100Kgs |

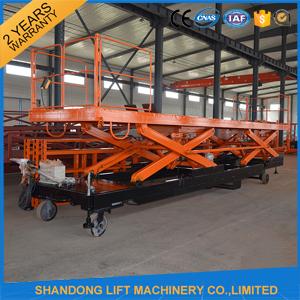

Product showing:
The Certificate:
