3.5m Hydraulic Scissor Car Lift / Hydraulic Home Garage CE SGS
2.5T 3.5m Hydraulic Scissor Car Lift / Hydraulic Home Garage CE Car Parking Lift:
Description:
Hydraulic Scissor Car Lift is a widely used car lift equipment.It's scissor structure, make the lifting platform stability ,wide platform and high bearing capacity,when lifting has higher .It makes aloft work more efficient and more security.It makes parking your car in the upstairs become possibility and more efficient and more security.
Advantages:
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection devices locking device for falling protection.
Product parameters we supplied for clients:
|
MODEL |
LOAD CAPACITY |
PLATFORM SIZE |
LIFT HEIGHT |
PIT DEPTH |
POWER |
|
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
700mm |
220V, 240V, 380V or 400V |
|
SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
750mm |
220V, 240V, 380V or 400V |
|
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
750mm |
220V, 240V, 380V or 400V |
|
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
|
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
|
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
|
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
|
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
|
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1050mm |
220V, 240V, 380V or 400V |
|
SJG20-5 |
20T |
6m x 3m |
5m |
950mm |
220V, 240V, 380V or 400V |
|
The hydraulic scissor car lift can be customized as your detailed size. |
|||||
Safety:
1. The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works.
2. The work table would equipped the guardrail to guarantee the safety.
3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
4. The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.

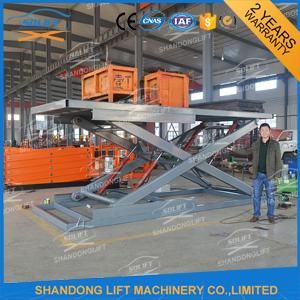

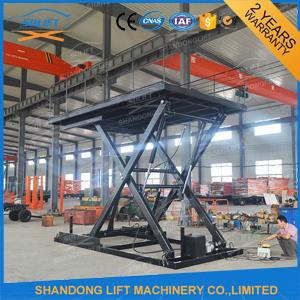

Products showing in our Fcatory:

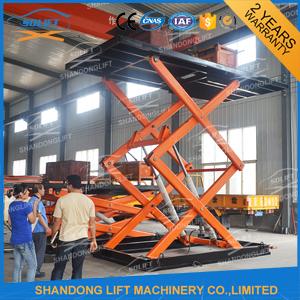

Customer Visiting for ordinging the Hydraulic Scissor Car Lift:
