Disabled Wheelchair Lift 7m 250kg Disabled Home Wheelchair Lifts for Old People
Disabled Wheelchair Lift 6m 250kg Disabled Home Wheelchair Lifts for Old People:
1. Intorduction of wheelchair lift :
- One of the most common challenges faced by wheelchair users is going through steps in public or private areas.
- If you are considering an alternative to your current method of going up and down stairs, a wheelchair lift might be your best choice.
- Our wheelchair lift is a short rise vertical elevating system.
- This durable and easy to use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2. Wheelchair Lift Safey Precaution: the disabled wheelchair lift
| Emergency Stop |
The lifting and lowering process can be stopped immediately by pressing the emergency button. |
|
|
Safety device
|
Safety Interlock | Lock the platform when it is out of control |
| Safety Sensor |
The operation must be stopped immediately the safety edge meets obstacles during operation. |
|
| Emergency lowering |
The platform can be lowered by opening hydraulic valve manually or rolling screw rod. |
|
| Auto-flap | Turn up after lifting | |
3. Parameter:
| Model |
Platform size (mm) |
Load (kg) |
Lifting height (m) |
Package size (mm) |
| SJG0.25-1.0 | 1200*1000 | 250 | 1.0 | 1600x1300x1550 |
| SJG0.25-1.5 | 1200*1000 | 250 | 1.5 | 2100x1300x1550 |
| SJG0.25-2.0 | 1200*1000 | 250 | 2.0 | 2800x1300x1550 |
| SJG0.25-2.5 | 1200*1000 | 250 | 2.5 | 3300x1300x1550 |
| SJG0.25-3.0 | 1200*1000 | 250 | 3.0 | 4000x1300x1550 |
| SJG0.25-3.5 | 1200*1000 | 250 | 3.5 | 4500x1300x1550 |
| SJG0.25-4.0 | 1200*1000 | 250 | 4.0 | 5000x1300x1550 |
| SJG0.25-5.0 | 1200*1000 | 250 | 5.0 | 6000x1300x1550 |
| SJG0.25-6.0 | 1200*1000 | 250 | 6.0 | 7000x1300x1550 |

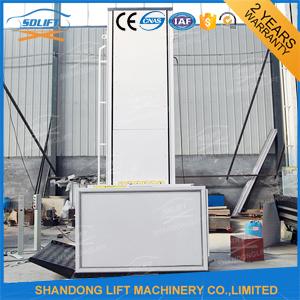

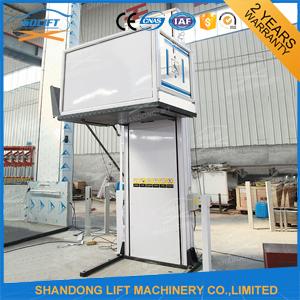

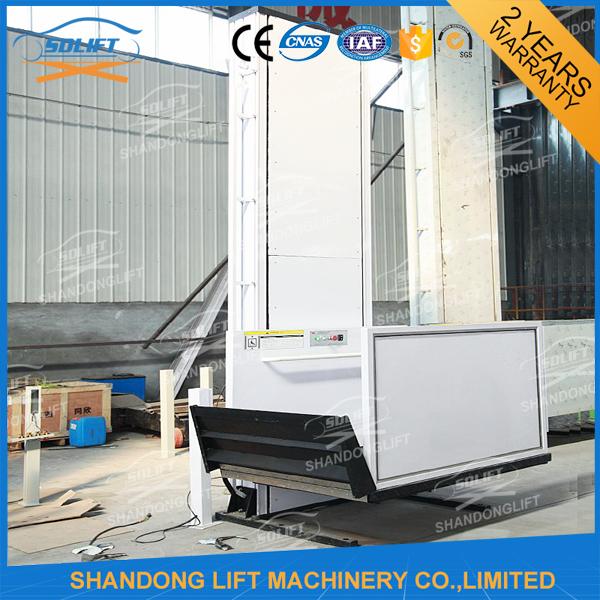

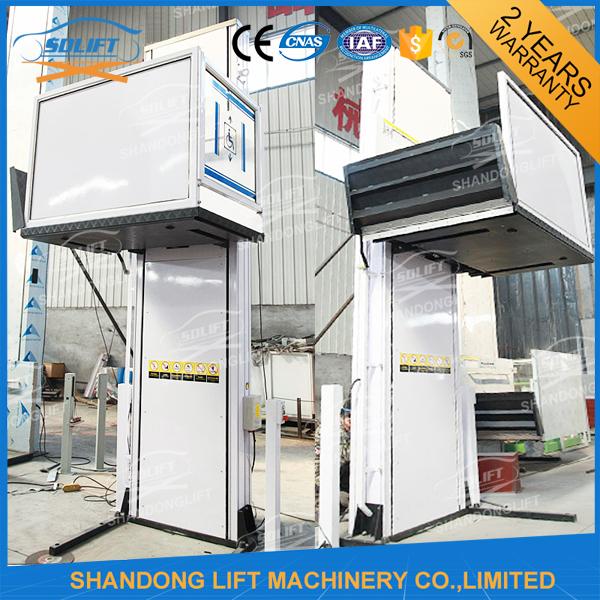

4. Wheelchair Lift lift picture:
Our Services
1. All the machines will be full tested before shipment
2. The total machine guarantee is 24 moths
3. 24 Hours technical support, email, telephone or video online
4. User-friendly english manual for machine using and maintaining
5. Sereral sets wearing parts will be free for you
Anything we can do for you pls feel free to contact us.
Your inquiry will be highly appreciated.
Thanks & best regards
