Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved
Heavy Duty Scissor Truck Lift Auto Electric Car Scissor Lift with Rupture Valve:
Product Description
| Model | SJG4-3.3 |
| Name | car auto scissor electric lift |
| Loading capacity | 4000kg |
| Lifting/travel height | 3300mm |
| Lift platform | 5800mm*2700mm |
| Material | High Strength Manganese Steel |
| The car scissor lift can be customized as your request. |
Configuration:
Platform Material:120mm*60mm rectangular tube +6mm checkered iron
Scissor material: 200mm*100mm*15mm high strength Manganese Steel
Hydraulic system: 380V/5.5Kw or other request

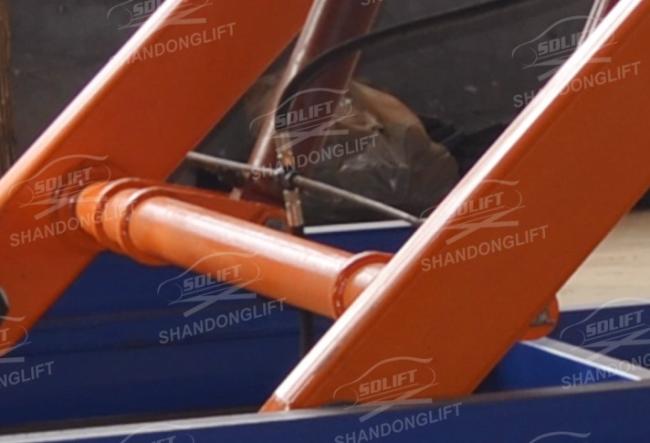

Piston Rod: 80*4 hard chromium plating surface

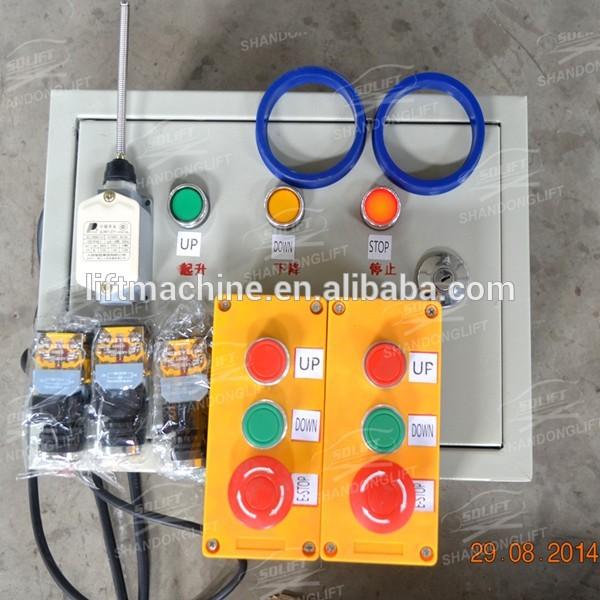

Controller: 1 control box below, 1 control panel above platform
Testing:
All the hydraulic car lift for home garage are passed 1.2 times loading test before leaving factory.
1) High Precision Hydraulic Cylinder: 110*4sets(high-pressure oil pump,Hydraulic oil: summer 46#, winter 32#).
2) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
Other feature:
1) The safe handrail to guarantee safety of the cars above the platform.
2) The limit switch system helps hydraulic car lift for home garage to stop at accurate position.
3) Electricity leakage protection device is equipped on, all electric components are CE certified.
Control System:
1. Control:
Lift Up,Stop and Down could be realized at each control point.The lift platform could stop at the accurate loaction point.

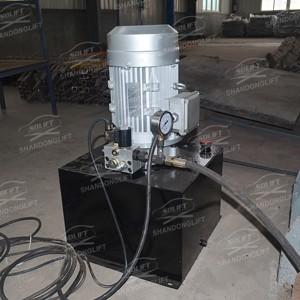

2. Pump station:
Italy hydrappp or your request brand.
