Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home

Parameters:

1) Load capacity: 3500kgs (lower platform)
                            3500kgs (upper platform)
2) Platform size: 5.7m x 2.7m (lower platform)
                           5.7m x 2.7m (upper platform)
3) Lift height: 3.5m
4) Height between platforms: 3.5m
5) Power: 380v/50hz/3ph/5.5kw (or 220v)
6) Control system: 1 control box, 1 control panel, 2 remotes
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001

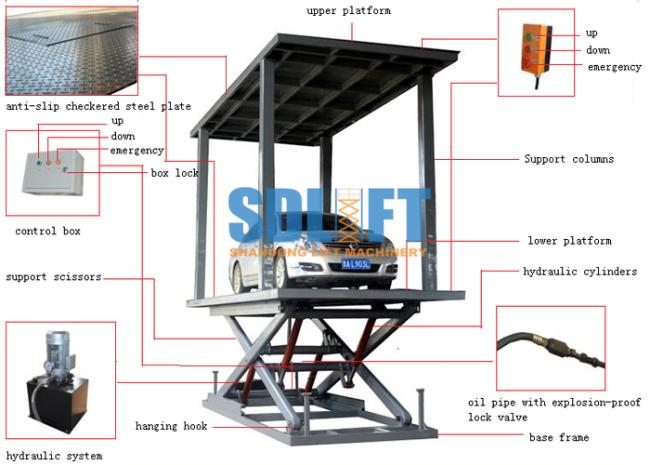

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 100*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The limit switch system helps the hydraulic car parking system​ to stop at accurate position
3) Electricity leakage protection device is equipped on, all electric components are CE certified.
4) All the hydraulic car parking system are passed 1.2 times loading test before leaving factory.
