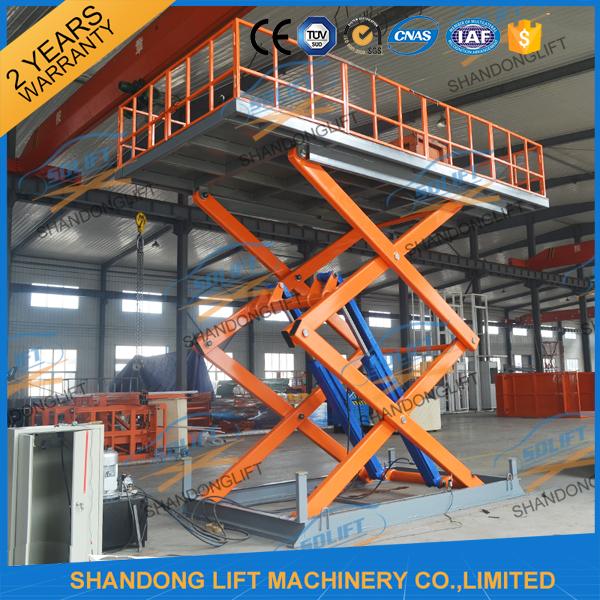

4.7M 3T Hydraulic Lift Table
4.7M 3T Hydraulic Scissor Car Lift Electric Car Parking Lift CE TUV SGS Home Use:
Application:
| - CE certification Hydraulic car scissor lift table/scissor platform can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. |
| - Operation is easy. There are 2 sets control system installed on the hydraulic car elevator garage car elevator, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform. |
The models we supplied for clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
| The Hydraulic scissor car lift table/scissor platform can be customized as your detailed size. | |||||
Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw
4) High Precision Hydraulic Cylinder
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Products showing:
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the cars above the platform.
3) The limit switch system helps car washing lift car to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the car washing lift are passed 1.2 times loading test before leaving factory.
The workshops:
Packaging & Shipping:
The customers visiting:
