Vertical Parking System Car Mini Lift Residential Pit Garage Parking Car Lift
Vertical parking system car mini lift residential pit garage parking car lift with CE
|
Model
|
SJG3-5
|
|
Loading capacity
|
3000kg
|
|
Lift height
|
5000mm
|
|
Lift platform size
|
5200mm*2600mm |
|
Material
|
High Strength Manganese Steel
|
|
Note
|
The car scissor lift can be customized as your request.
|
Configuration:
1. Platform Material: rectangular tube +checkered steel plate

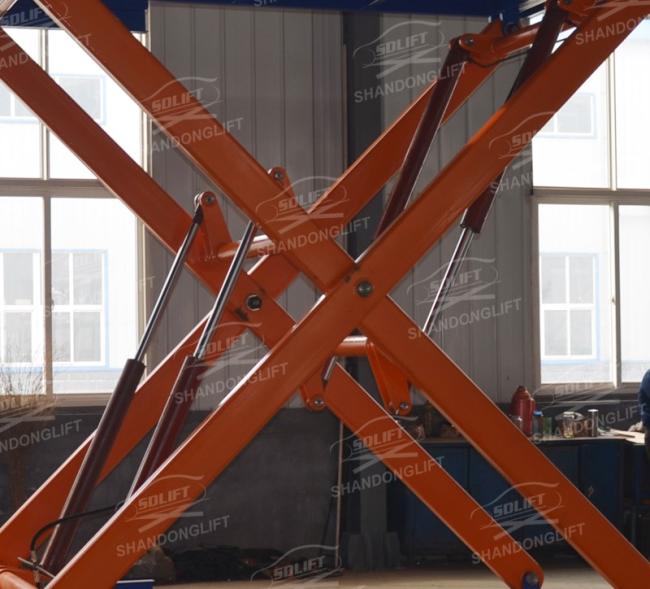

2. Scissor material: high strength Manganese Steel
3. Hydraulic system: 380V/5.5Kw
4. Piston Rod: hard chromium plating surface

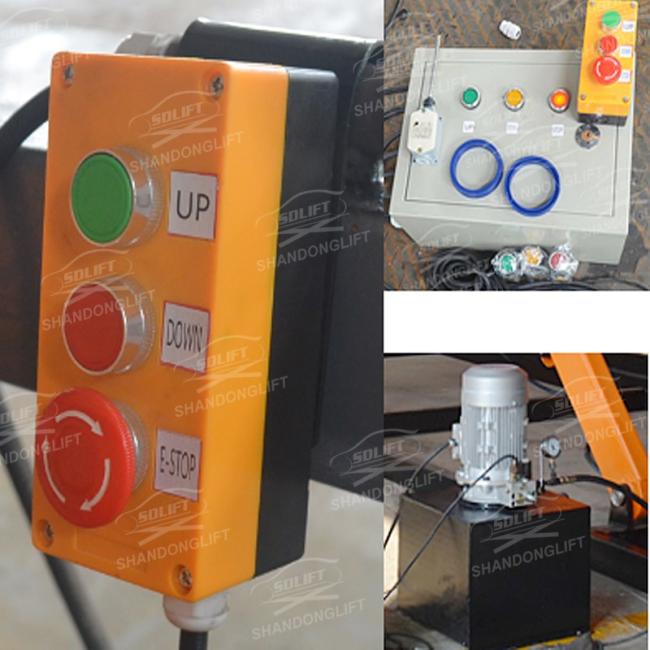

5. Controller: 1 control box below, 1 control panel above platform
Testing
All the hydraulic car lift for home garage are passed 1.2 times loading test before leaving factory.
Other Feature
1) The safe handrail to guarantee safety of the cars above the platform.

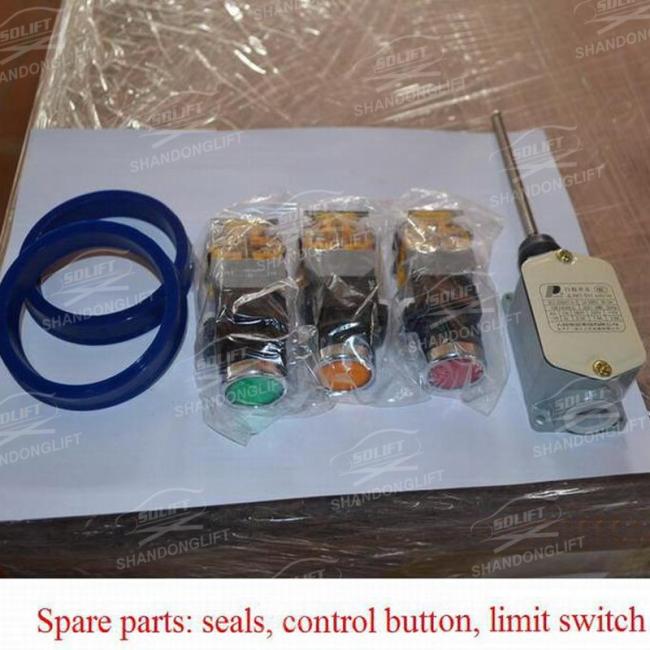

2) The limit switch system helps hydraulic car lift for home garage to stop at accurate position.
3) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) High Precision Hydraulic Cylinder: (high-pressure oil pump,Hydraulic oil: summer 46#, winter 32#).

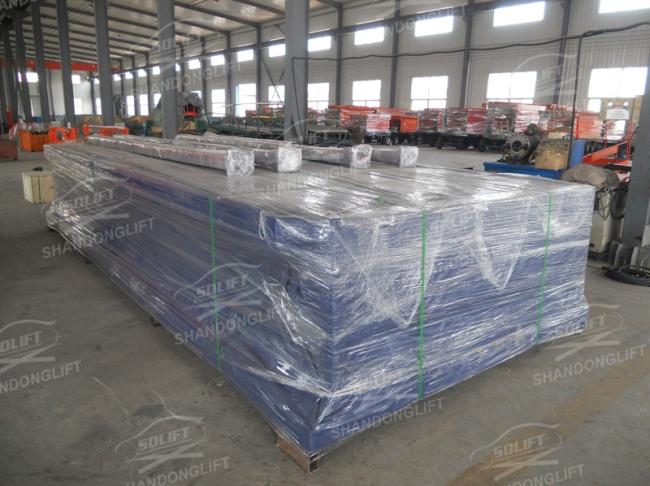

Iron case or plywood case package or your request.
