PVC HF RFID TAGS / 216 86*54MM rectangle White Film Face Stickers
HF RFID TAGS / 216 86*54MM rectangle White Film Face Stickers

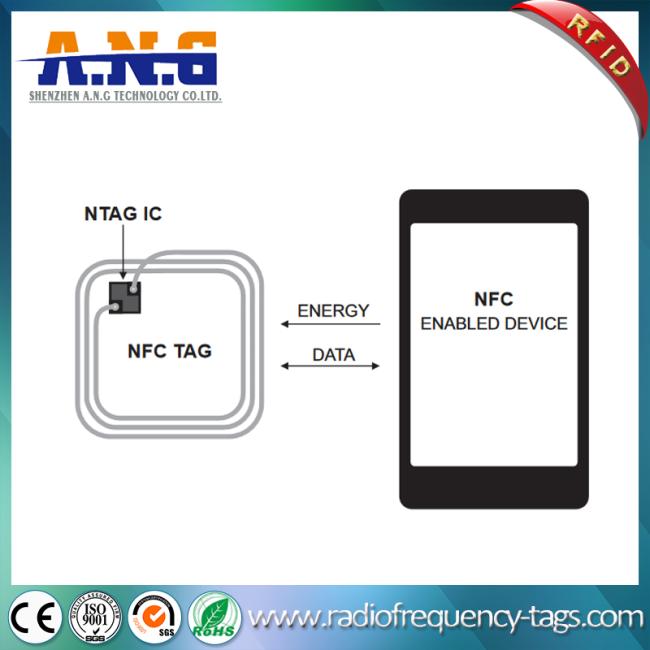

The NFC Tag is at the heart of any Contactless system. Small, inexpensive and portable, tags consist of a tiny chip and antenna, usually embedded within a sticker, poster or other product. NFC tags store data, transmitting it to a Contactless reader when in close proximity. The clever thing about NFC tags is that they don’t need batteries and never need to be recharged – they generate all the power they need from the Contactless transmission process itself.
NFC Tags can store data such as web addresses, product IDs and business card information. The main factors likely to influence your choice of tag are memory capacity and transmission strength.
216 86*54MM rectangle White Film Face Stickers. A great way to use NFC. Work well for Smart Posters and general NFC uses.
Stickers are supplied either individually, as folded strip or on a reel depending on quantity ordered.
This Tag is a popular choice with our customers and we offer Unique ID Print and Unique Encoding if required.
|
Physical Features: |
|||||
| Material | PVC | Dimensions | 86*54MM | ||
| Working Temperature | -20°C-75°C | Storage Temperature | -40°C-85°C | ||
| NFC Features: | |||||
| Standard | ISO/IEC 14443A | ||||
| Chip Type | 216 | ||||
| Memory | 888 Bytes | ||||
| Frequency | 13.56MHz | Read Range | 1-5cm(depends on the reader or phone model) | ||
| Other Features: | |||||
| Data Storage | > 10 years | ||||
| Re-write | 100,000 times | ||||
| Installation | Adhesive | ||||
| Customization | Printing,URL encoding, Serial numbers,Web links, Designing,etc | ||||
| Application | Access control,Payments,Information collection and exchange ,Custom setting, WIFI, Alarm, Business card,etc. |
||||
Features:
- Contactless transmission of data and supply energy
- Operating frequency of 13.56 MHz
- Data transfer of 106 kbit/s
- Data integrity of 16-bit CRC, parity, bit coding, bit counting
- Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
- 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
- UID ASCII mirror for automatic serialization of NDEF messages
- Automatic NFC counter triggered at read command
- NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
- ECC based originality signature
- Fast read command
- True anticollision
- 50 pF input capacitance
Target Applications
- Smart advertisement
- Goods and device authentication
- Call request
- SMS
- Call to action
- Voucher and coupons
- Bluetooth or Wi-Fi pairing
- Connection handover
- Product authentication
- Mobile companion tags
- Electronic shelf labels
- Business cards

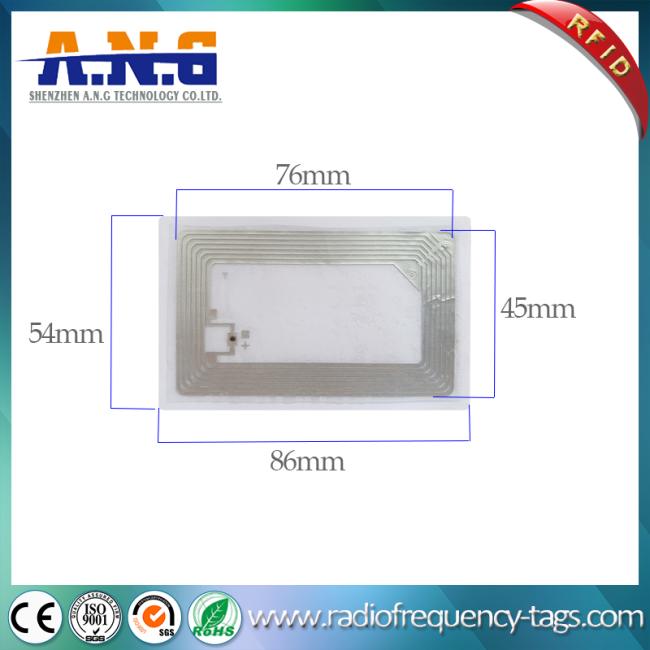

Size:
