SINOTRUK HOWO 6x4 Concrete Mixer Truck 371HP LHD
SINOTRUK HOWO 6x4 Concrete Mixer Truck 371HP LHD
SINOTRUK HOWO 6x4 LHD Concrete Mixer Truck 371HP 10CBM
Description:
Sinotruk HOWO A7 Concrete Mixer 10CBM 371HP 6x4 LHD ZZ1257N3841W
HOWO A7 concrete mixer adopts HOWO A7 chassis, equipped with A7-W single sleeper cab, specially for export, equipped with Euro 2 common rail or electronic ramp, independently developed Euro IV heavy truck engine, imported standard ZF steering from Germany, HOWO 10 and 12 gearboxes, front axle HF9 tons, rear axle HC16 or AC16, with excellent load capacity to meet customer needs.
The mixing tank is composed of high wear-resistant steel plates and cage molds to ensure the concentricity and roundness of the flanges, various parts of the cylinder and rolling elements to ensure the normal operation of the vehicle. The main body of the oil tank adopts double helical blades with moderate density and moderate cone shape, and there is a symmetrical stirring plate at the front door ball, and the blades and guide vanes are installed at the slots, so the material is used faster.
Specification:
| SINOTRUK HOWO 6x4 LHD Concrete Mixer Truck 371HP 10CBM | ||||
| Model | ZZ1257N3841W | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||

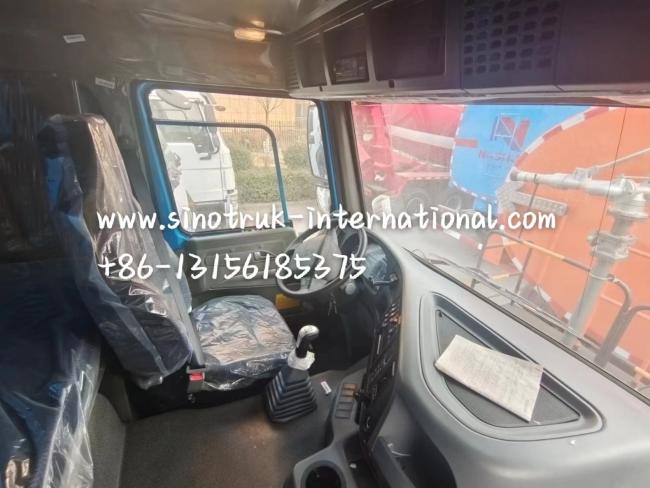

| Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8098 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3825+1350(mm) | |||
| Overall dimension | 8604×2496×3950(mm) | |||
| Tank body Capacity | 10CBM | |||
| The curb weight | 12800(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 102km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business.
Competitive Advantage:
1) The leading product technology, complete function, excellent performance, reliable quality, easy to operate.
2) Optimization of body structure, special mold production, beautiful appearance, concrete mixing, discharge uniformity, low rate of residual.
3) Imported hydraulic pump, hydraulic motor and speed reducer.
4) Uses the high strength steel plate, long service life.
5) Optimization of the whole structure, low center of gravity, high running efficiency.
6) Product range is wide, the tank capacity of 6 to 18 cubic meters.
7) Choose a variety of auxiliary device.
8) Match all concrete mixer truck chassis.
9) based on strong technical support and top level technology make the trucks with high quality and more reliable
10) competive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and quickly
