LHD 6X4 Heavy Duty Tipper Dump Truck 10 Wheels 30 - 40 Tons For Mining Industry

Price Negotiable
Price: USD38000-USD42000/UNIT)negotiation
MOQ: 1 Unit
Delivery Time: 25 working days after received your advance payment
Brand: SINOTRUK HOKA
Product Description

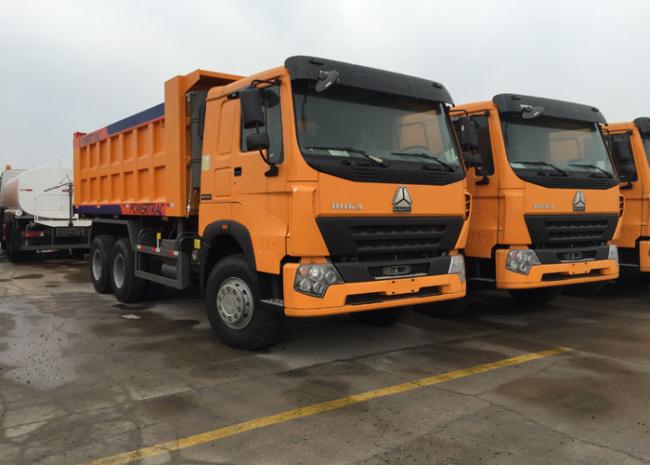

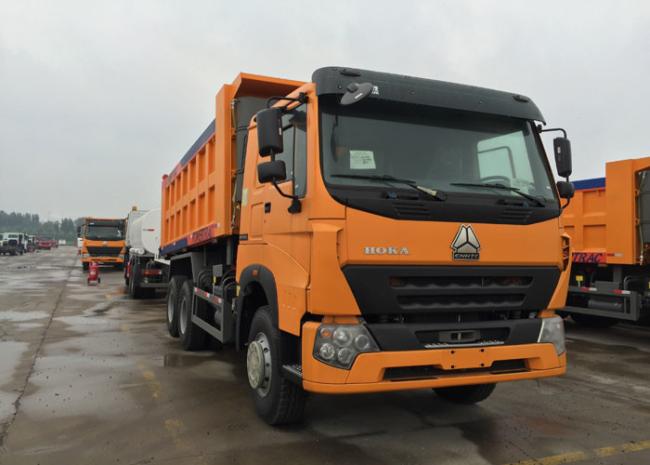

Tipper Dump Truck SINOTRUK LHD 371HP 10 wheels 30 - 40tons for Mining Industry



Description:

Tipper Dump Truck SINOTRUK LHD 371HP 10 wheels 30 - 40tons for Mining Industry

HOKA brand is the Leader of Heavy Duty Truck Industry Driving King On The Road.

High Quality , More Lighter . High Level Comfortable:Cabin 4 point full -floating air

suspension ,adjustable steering wheel with various heightsand angles.air suspension seat,

Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM

Gearbox ,bunk with AC.



The standard 400 liter Aluminum Alloy tank. Also optional 600 liter Aluminum Alloy large tank. 600 liters fuel tank (with large unilateral combined pedal) high strength lightweight materials for the new international standard of heavy truck, the A7 tractor has more than 1500 kilometers of super endurance.

Cab interior

Warm interiors make driving more comfortable environment inside the room. The whole wraparound dashboard, all the joystick layout, at your fingertips.



Primer and topcoat coating in Chinese's independent research and development of the new paint line, advanced equipment and high-quality paint makes the vehicle paint life, cleanliness, brightness, corrosion resistance and adhesion have reached or exceeded the international level.





Specifications:




Tipper Dump Truck SINOTRUK LHD 371HP 10 wheels 30 - 40tons for Mining Industry
Model ZZ3257N3647B1
Drive Type 6×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW15710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3600+1350(mm)
Overall dimension 8375×2496×3450(mm)
Cargo body 5600×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1)fast delivery time, we can arange production according to your needs exactly and

quickly

2) professional import and export dealing precedure, make customs clearance more high efficiency

3)competive price, cost-effective

4)low fuel consumption
5) strong enough engine

6)with all kinds of truck model, which can fulfil your requirement
7)the key parts adopt the world's top technology products
8)based on strong technical support and top level technology make the trucks with high

quality and more reliable

9)quick and efficient spare parts supply bring you more convenient

10)Optimized cargo body structure,light weight,high rigidity,large loading capacity

11)Using the high strength steel,it has long service life

12)Optimized the sealing structure has the better sealing effect.

13)Multiple box structures and device selections

14)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

running efficiency.
