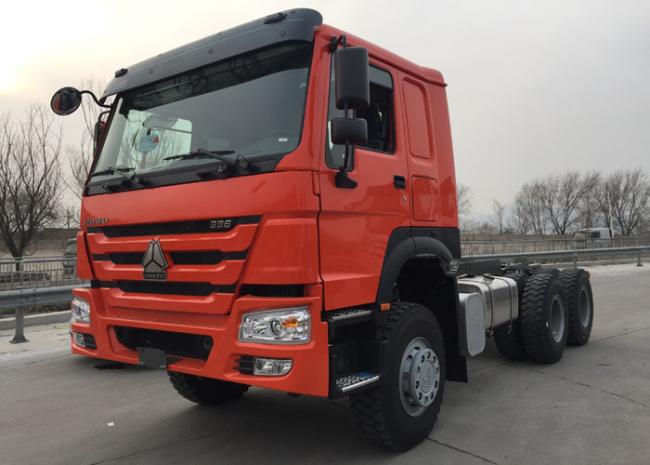

Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck
SINOTRUK HOWO Tow Tractor Truck LHD 6x4 371HP Flat roof cabin air suspension
Description:
SINOTRUK HOWO Tow Tractor Truck LHD 6x4 371HP Flat roof cabin air suspension
HW series heavy yupe transmission is a new generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.
Presently, this type of transmission is applied to be engine for the heavy duty truck which power range is 336--420 ps, it is the first choice for the domestic heavy duty truck.
CNHTC owns several national patents for aluminum alloy fuel tanks and is the first manufacturer starting the mass production. The product quality is well guaranteed by the most advanced welding production line and full-process monitoring over the welding. Presently, the tank capacity includes 200L, 240L, 250L, 350L, and 400L and the round, D-shaped and square structure shapes can meet the different customers' demands. The aluminum alloy fuel tank is featured in light weight, high strength and excellent corrosion resistant performance to avoid the tank internal corrosion, enhance the fuel clearning degree and prolong the service life of engine.
Specification:
|
SINOTRUK HOWO Tow Tractor Truck LHD 6x4 371HP Flat roof cabin air suspension |
||||
| Model | ZZ4257S3241W | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW76(with single sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8098 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire |
12R22.5 tubeless tyre 11.00R20,12.00R20,12.00R24 Radial tire |
|||
| Wheel base | 3200+1350(mm) | |||
| Overall dimension |
6800×2496×2958(mm) |
|||
|
Fifth Wheel |
#50, #90 |
|||
| The curb weight | 9180(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 102km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and
Mining area .
Competitive Advantage:
1.We are professional manufacturers to do the special vehicles ,such as fire truck ,
wrecker tow truck, aerial work platform truck, water tank truck, fuel tank truck ,refrigerator truck,mixer
truck, truck with crane ,garbage truck ,vacuum sewage suction truck,etc .
2.We are supply all brands special truck of SINOTRUK
3.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
4.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
