SINOTRUK HOWO Concrete Mixer Truck 10 CBM For Concrete Transportation
Concrete Mixer Truck 10 CBM SINOTRUK HOWO Vet Concrete Transportation Eaton Pump Motor Banfeili Reducer
SINOTRUK HOWO ZZ1257N3841W Wet Concrete Mixer Truck 10CBM 371HP Engine
Description:
SINOTRUK HOWO ZZ1257N3841W Wet Concrete Mixer Truck 10CBM 371HP Engine

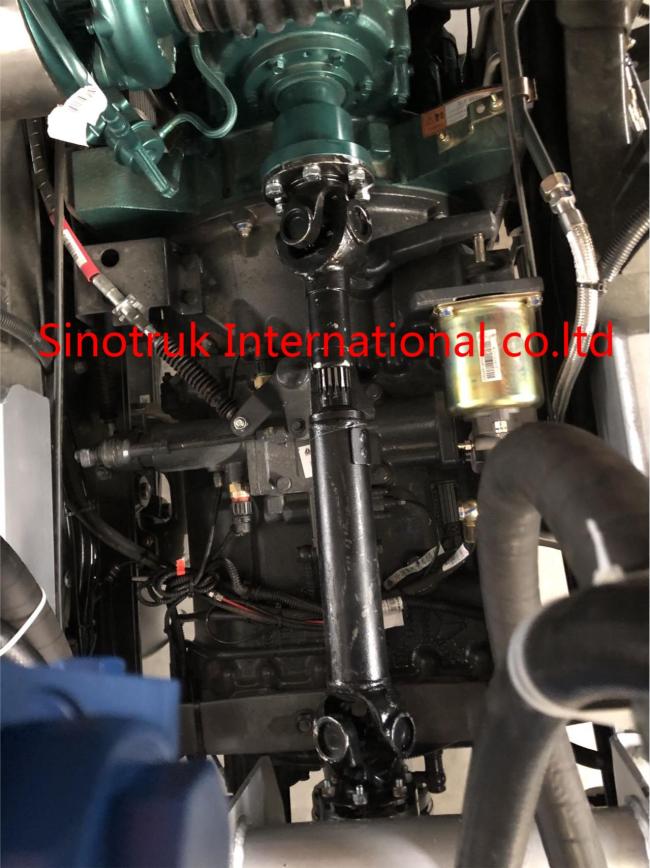

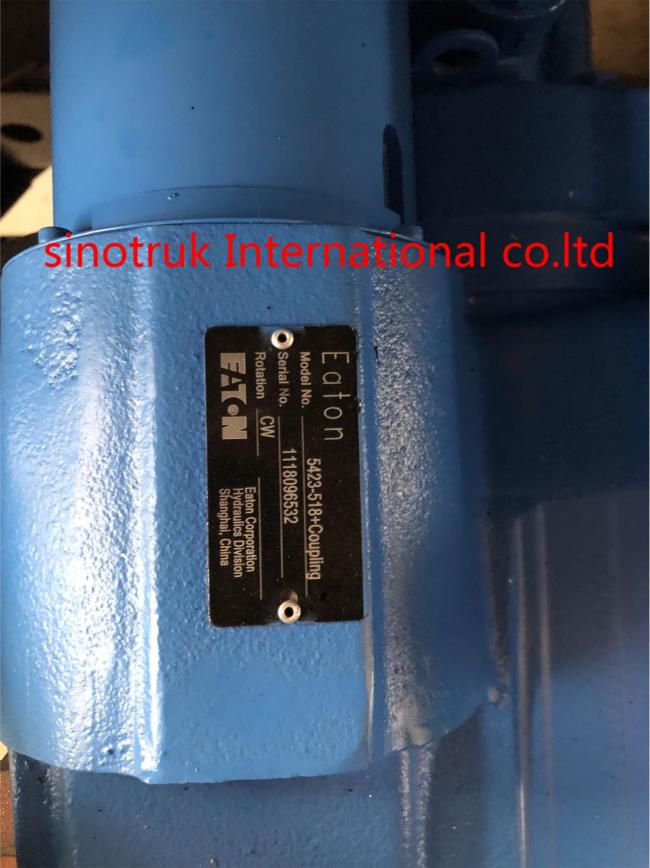

Our mixer truck using import hydraulic system, such as America Eaton Pump and motor, Italy Bonfiglioli brand reducer
easy to repair and maintainance.
The mixing tank body is made of high strength wear-resistant steel plate, cage type mold
are integrally formed to ensure that the flange, sections of the cylinder body and
rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.
The tank body adopts the double helix blade, moderate density and taper before the
gateball symmetric stirring plate and tank mouth at the installation of blades and a
material guide vanes, resorted to materials to be more even faster.
The HOWO Concrete Mixer Truck adopts HOWO chassis, equipped with HW76 single berth cabin
or HW70 cab, exclusively for export is equipped with European 2 or Electronic common
rail, Euro III and Euro IV SINOTRUK independent research and development of engine, standard
German imported ZF steering, HOWO 10 and 12 gear box,HF9 tons of front axle, HC16 or AC16
rear axle, carrying capacity great to meet the needs of customers.
Specification:
| Concrete Mixer Truck SINOTRUK HOWO 10CBM 371hp Italy hydraulic system | ||||
| Model | ZZ1257N3841W | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||

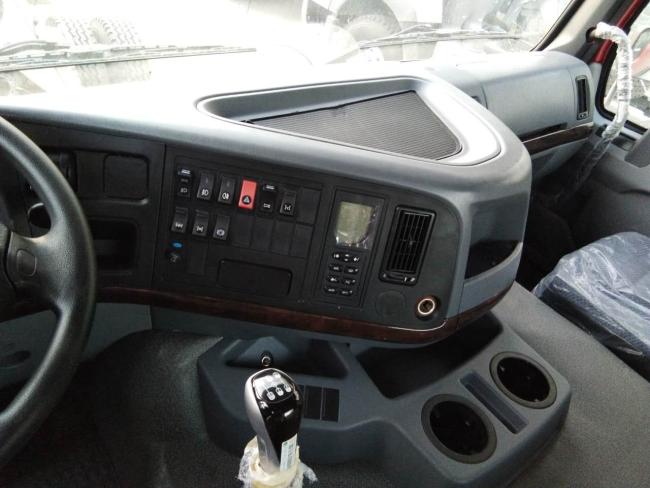

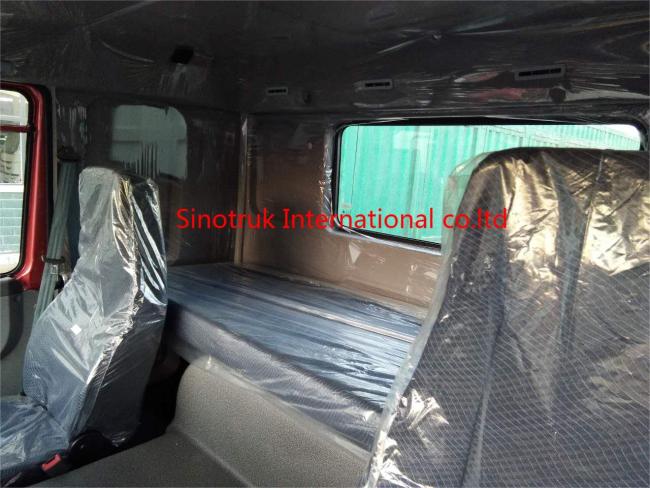

| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8098 hydraulic steering with power assistance. | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
| Rim/ Tire | 12R22.5, 13R22.5, 315/80R22.5, 12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 9050×2500×3950(mm) | |||
| Tank body Capacity | 10CBM | |||
| The curb weight | 12800(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 102km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
t’s suitable for agitating and transport concrete, for construction site, road repairing and some other
infrastructure construction business.
Competitive Advantage:
1)The leading product technology, complete function, excellent performance, reliable quality, easy to
operate.
2)Optimization of body structure, special mold production, beautiful appearance, concrete mixing,
discharge uniformity, low rate of residual.
3)Imported hydraulic pump, hydraulic motor and speed reducer.
4)Uses the high strength steel plate, long service life.
5)Optimization of the whole structure, low center of gravity, high running efficiency.
6)Product range is wide, the tank capacity of 6 to 18 cubic meters.
7)Choose a variety of auxiliary device.
8)Match all concrete mixer truck chassis.
9)based on strong technical support and top level technology make the trucks with high
quality and more reliable
10)competive price, cost-effective
11)quick and efficient spare parts supply bring you more convenient
12)fast delivery time, we can arange production according to your needs exactly and
quickly
13) professional import and export dealing precedure, make customs clearance more high efficiency
