2.4G 4CH Car Video Wireless DVR system 7 Inch Monitor With 128GB SD Card
2.4G 4CH Car Video Wireless DVR system 7 Inch Monitor With 128GB SD Card

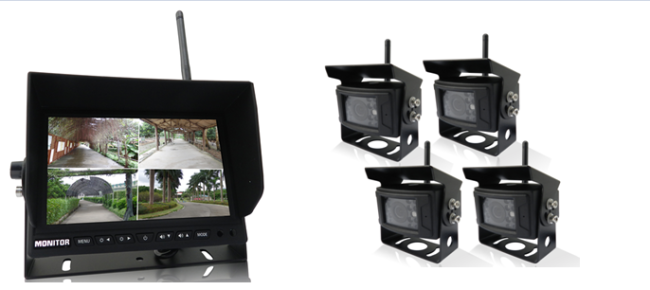

1. The wireless camera DVR kit is widely used for truck, van with its easy installation and stable performance.
2. No need the wire, everyone can install it easily. It can support 4pcs wireless cameras inputs for front, side and backview and 128GB sd card recording, which can record what happens in the vehicle and make driving safer.
DVR Specification
| Spec. | Mode No.: VW-710WMQ-DVR |
| Screen | 7 inch |
| Screen Ratio | 16:09 |
| Screen resolution | 800*R.G.B*480 |
| Backlight | LED |
| Brightness | 300 cd/m2 |
| Image resolution | VGA:640X480/D1:720X480 |
| Viewing angle | UP: 50°,Dwon: 70°,Left: 70°,Right: 70° |
| Working Temprature | -20~+60 ºC |
| Working Humidity | 85%RH |
| Storage Temprature | -30~+85 ºC |
| Power | DC 9-30V |
| Starting time | 2S |
| Delay time | 120mS |
| Current consumption | TYPE:300mA, Max.380mA |

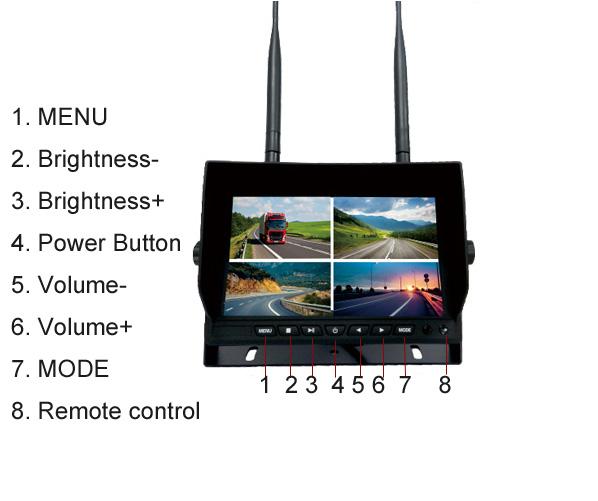

| OSD control | Match code/Image setting/Mirror or No-mirror setting/ystem setting/Replay/DVR setting |
| Power | <5W |
| AV input | Support 4 channel wireless cameras input and display |
| Image display | 1/2/3/4 images display adjustable |
| Trigger | Support 4 channel trigger control(with parking line) |
| DVR recording | SD card, 128G Max(class10) |
| Video compressed format | MPEG4 |
| Operating frequency range | 2400 ~ 2483.5MHz * |
| Video frame rate | VGA:30f/s/D1: 25f/s |
| Modulation mode | FSK/GFSK |
| System | PAL/NTSC |
| Transport bandwidth | 3Mbps |
| Receive sensitivity | -88dBm@4MHZ |
| RF Impedance | 50, Typ. |
| Spread Spectrum | Frequency Hopping |
| Transmitting Distance | 2.4G Open Distance Can Reach 150M |
| Shockpro of level | 4G |
| Audio | 4 way Audio input |
| Power Cable | 5.5DC Power Cable |
| Speaker output power consumption | 32 2W |
| Weight | 0.54KG |
| Size | 180mm*121mm*24m |
Cameras Specification
1. CMOS: 1058 SENSOR 1/4"
2. Viewing angle: 120 degree
3. Power supply: DC12-24V
4. Power comsumption: 3W
5. Working temperature: -20ºC~70ºC
6. Night vision visual range: about 3 metres
7. Waterproof level: IP68
8. 2.4G wireless distance: open distance up to 100m
9. Audio: Built-in microphone
10. Size: 86.5mm*74.5mm*77mm
About US
We are professional manufacturer of 4ch/8ch mobile dvr system with monitors, cameras.They are used for vehicle fleeting management and safety monitoring.The full system are very necessary for buses , truck, school buses,tailer,police cars, bank money carrying cars and so on.
3G remote viewing real time monitoring function let you see what drivers and passengers are doing, where they are with GPS tracking .
Welcome you to test our Quality.
