Diesel 36M Telescopic Hydraulic Boom Lift for Self Propelled Aerial Work 480KG Load Capacity

MODEL

GTBZ36

MEASUREMENTS

Metric

US

Working height maximum *

38.34m

126ft

Platform height maximum

36.64m

120ft

Horizontal reach maximum **

22.9m

75ft

Below ground reach

4.64m

15ft

Platform length-8ft model

0.91m

3ft

Platform length-6ft model

0.76m

2ft6in

Platform width-8ft model

2.44m

8ft

Platform width -6ft model

1.83m

6ft

Height-stowed

3.08m

10ft

Length-stowed

12.96m

43ft

Width –axle retracted

2.49m

8ft

Width –axle extended

3.35m

11ft

Wheelbase

3.66m

12ft

Ground clearance-center

0.43m

1ft5in

Lift capacity (restricted)

480kg

1056lbs

Lift capacity (non-restricted)

340kg

748lbs

Platform rotation

160°

Jib rotation

—

Turntable Swing

360°continuous

Turntable tailswing -axle retracted

1.82m

6ft

Turntable tailswing -axle extended

1.38m

5ft

Travel speed -stowed

4.4km/h

2.73mph

Travel speed -raised or extended

1.1km/h

0.68mph

Gradeability -stowed (4WD/2WD)

42%/30%

                                       inside

Turning radius - axle retracted            outside

4.14m

13ft7in

6.56m

22ft

                                       inside

Turning radius - axle extendeded         outside

2.74m

9ft

5.85m

19ft

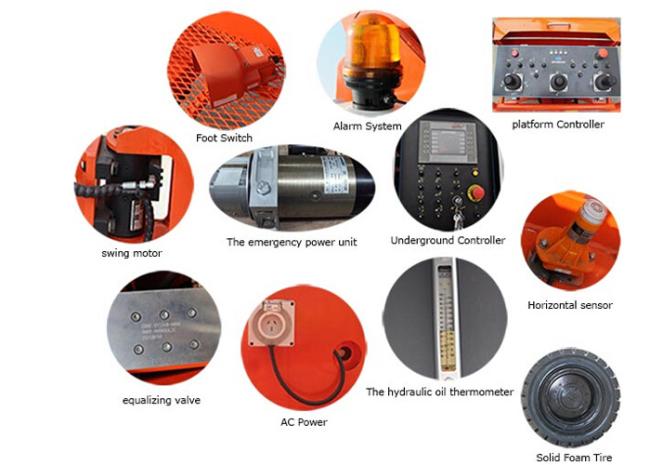

Controls

24V DC Proportional

Solid tires

12.00-20/8.5

Power

Power source

Lovol 1004-4 78 hp (58kw)

Perkins 400 76 hp (56kw)

Cummins B3.3.80 HP (60kw)

Auxiliary power unit

24V DC

Hydraulic tank capacity

265L

Fuel tank capacity

150L

WEIGHT

2WD

20020kg

44144lbs

4WD

20100kg

44321lbs

STANDARDS COMPLIANCE  EN280,JG/T5101,Q/ADZV001-2008
