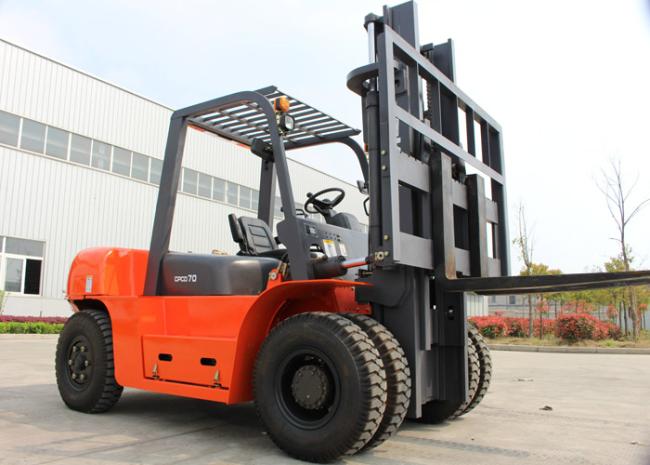

7 Tons Diesel Industrial Forklift Truck With 197MM Free Lift Height
7 Tons Diesel Industrial Forklift Truck for Industry With 197MM Free Lift Height
Specifications:
|
Model |
Unit |
CPCD70 |
|
|
Power type |
|
Diesel |
|
|
Rated capacity |
kg |
7000 |
|
|
Load center |
mm |
600 |
|
|
Mast Lifting height |
mm |
3000 |
|
|
Free lift height |
mm |
197 |
|
|
Fork size(L*W*T) |
mm |
1220×150×55 |
|
|
Tilting Angles(Front/Rear) |
deg |
6°/12° |
|
|
Front overhang |
mm |
590 |
|
|
Exterior Size |
Length without fork |
mm |
3573 |
|
Overall width |
mm |
1990 |
|
|
Mast drop |
mm |
2500 |
|
|
Max. lift |
mm |
4420 |
|
|
Front-wheel Overhead |
mm |
2450 |
|
|
Min Turning Radius |
mm |
3360 |
|
|
Min. intersecting aisle |
mm |
3040 |
|
|
Speeds |
Max Driving speeds |
km/h |
26/28 |
|
Lifting speeds |
mm/s |
325/380 |
|
|
Lowering speeds |
mm/s |
≤600 |
|
|
Max. grade ability |
% |
24 |
|
|
Total weight |
kg |
9350 |
|
|
Tires |
Front |
|
8.25-15-14PR |
|
Rear |
|
8.25-15-14PR |
|
|
Wheelbase |
mm |
2250 |
|
|
Tread |
Front |
mm |
1470 |
|
Rear |
mm |
1700 |
|
|
Min. ground clearance |
mm |
190 |
|
|
Engine |
Model |
|
Chaochai 6102 engine or Isuzu 6BG1 Engine |
|
Rated output |
kw/rpm |
73/2200 |
|
|
Rated torque |
N.m/rpm |
290/1650 |
|
|
No. of cylinder |
|
6 |
|
|
Displacement |
L |
5.789 |
|
|
Fuel tank capacity |
L |
140 |
|
Description:
1. Advanced hydraulic system, 2-speed lifting system can automatically adjust its lifting speed according to the goods weight ,electric controlled valve can work safety and efficiently.
2. Eqiupment with heavy –duty driving axle with big bearing capacity and enhanced oil cooled braking system, increase the reliabillgy and durability.
3. Equipments with fine safety monitor to make it has clear visibility, 3-step switch-lock confirmation device to guarantee safe work.
Features:
CPCD70: Load capacity 7000kg,hydraulic transmission,3m 2stage duplex mast, China engine XICHAI6110,
1220mm fork, Electronic gear transmission, key switch,Pneumatic tyres,Safety seat,Free tool box and spare parts.
Option:
As a professional manufacturer of forklift, we also can offer you customized service, the following items are optional:Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m, side shifter, fork positioner,longer forks, fork extension
