Heavy Duty Industrial Forklift Truck Material Handling Equipment , ISO

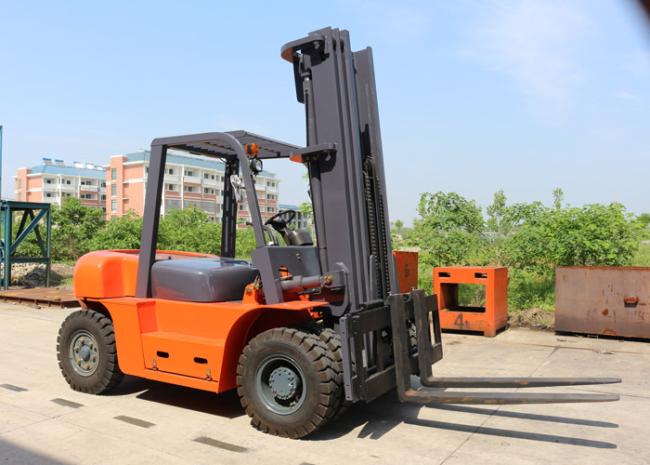

6Ton Diesel Forklift With Full Free Mast And Solid Tires CPCD60
Specifications:
|
Model |
Unit |
CPCD60 |
|
|
Power type |
|
Diesel |
|
|
Rated capacity |
kg |
5000 |
|
|
Load center |
mm |
600 |
|
|
Mast Lifting height |
mm |
3000 |
|
|
Free lift height |
mm |
197 |
|
|
Fork size(L*W*T) |
mm |
1220×150×55 |
|
|
Tilting Angles(Front/Rear) |
deg |
6°/12° |
|
|
Front overhang |
mm |
590 |
|
|
Exterior Size |
Length without fork |
mm |
4375 |
|
Overall width |
mm |
1995 |
|
|
Mast drop |
mm |
2500 |
|
|
Max. lift |
mm |
4420 |
|
|
Front-wheel Overhead |
mm |
2450 |
|
|
Min Turning Radius |
mm |
3300 |
|
|
Min. intersecting aisle |
mm |
3000 |
|
|
Speeds |
Max Driving speeds |
km/h |
26/28 |
|
Lifting speeds |
mm/s |
500/590 |
|
|
Lowering speeds |
mm/s |
≤600 |
|
|
Max. grade ability |
% |
19 |
|
|
Total weight |
kg |
8640 |
|
|
Tires |
Front |
|
8.25-15-14PR |
|
Rear |
|
8.25-15-14PR |
|
|
Wheelbase |
mm |
2250 |
|
|
Tread |
Front |
mm |
1470 |
|
Rear |
mm |
1700 |
|
|
Min. ground clearance |
mm |
190 |
|
|
Engine |
Model |
|
Made in China 6102BG |
|
Rated output |
kw/rpm |
73/2200 |
|
|
Rated torque |
N.m/rpm |
290/1650 |
|
|
No. of cylinder |
|
6 |
|
|
Displacement |
L |
5.789 |
|
|
Fuel tank capacity |
L |
140 |
|
Product Features:
A. Engine
1.) High efficient ISUZU/Xichai/Chaochai engine
B. Driving Axle
2.) Eqiupment with heavy -duty driving axle with big bearing capacity and enhanced oil -cooled braking system, increase the reliabillgy and durability
C. Automatic Instrument
3.) Centralize controlled lever and stimulant automatic instrument is easy operated and has beautiful appearance
D. Advanced Hydraulic System
4. ) Advanced hydraulic system ,2-speed lifting system can automatically adjust its lifting speed according to the goods weight ,electric controlled valve can work safety and efficiently
E. Automatic Stepless Speed
5.) Full automatic stepless speed adjustable electric controlled transmission gear box guarantee the forklift with superior travel and track performance.
Standard Configuration:
Diesel forklift truck with 6,000kg load capacity
Equipped with China engine 6110 Or ISUZU 6BG,Hydraulic transmission with TCM-technology
Standard with 3-stage wide-view mast, lifting height is 3,000mm,6000mm
Pneumatic tires, 1220mm or 2000mm forks,Safety seat,Free tool box and spare parts.
