6060,6063A,6101,6063, 3003 Aluminium alloy cold draw extruded round aluminium tube / pipe
1,Specification: See the Excel table
2,Material: A6063 ,A3003, and other series alloy as per customer's components.
3,suface treatment: Anodizing ,turning ,power coating,mill finish, etc
4,Design: As customer's drawing or sample or our own products.
5,Packing:Standard exporing package ,or as customer'request.

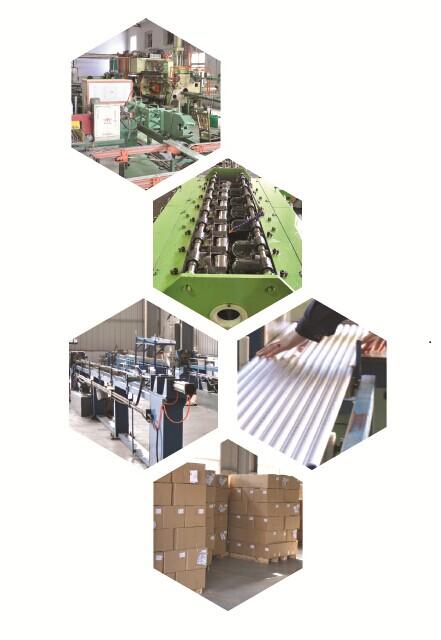

6,Equipment: CNC ,extruding machine,cold drawn machine,heating oven,straigtening machine,cutting machine,ageing machine.
7,Manufacturing process:
8,Color: Anodized ,natural,clear,ice cream,and request other color.
9,hardness: As per customer's actual request.
10,usage: this product is called theree vector tube ,part of laserprinter . it also has other usage.
if you want to know more detail , you could contact with us .
| OD | OD Tolerance | ID Tolerance | OD Roundness | straightness | Thickness Tolerance | Circular run-out |
| φ12.0-- | ±0.05 | ±0.02 | 0.01↓ | 0.015↓ | 0.04↓ | 0.05↓ |
| φ20.2 | ±0.08 | ±0.02 | 0.01↓ | 0.025↓ | 0.04↓ | 0.07↓ |
| φ20.14-- | ±0.05 | ±0.02 | 0.02↓ | 0.015↓ | 0.05↓ | 0.08↓ |
| φ30.3 | ±0.05 | ±0.02 | 0.02↓ | 0.020↓ | 0.05↓ | 0.10↓ |
| φ47.55-- | ±0.08 | ±0.04 | 0.04↓ | 0.030↓ | 0.07↓ | 0.15↓ |
| 60.55 | ±0.08 | ±0.04 | 0.04↓ | 0.050↓ | 0.07↓ | 0.20↓ |
Chemical composition
| Grade | Marginal value (%) | Other | AL | |||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | single | Total | |||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | — | 0.05 | 0.05V | 0.03 | — | 0.03 | — | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | — | — | 0.05 | 0.05V | 0.03 | — | 0.03 | — | 99.6 |
| 2014 |
0.50 -1.2 |
0.7 |
3.9 -5.0 |
0.40 -1.2 |
0.20-0.8 | 0.1 | — | 0.25 | — | 0.15 | — | 0.05 | 0.15 | >98 |
| 2024 | 0.5 | 0.5 |
3.8 -4.9 |
0.30 -0.9 |
1.20-1.8 | 0.1 | — | 0.25 | — | 0.15 | — | 0.05 | 0.15 | >98 |
| 3003 | 0.6 | 0.7 |
0.05 -0.20 |
1.0 -1.5 |
— | — | — | 0.1 | — | — | — | 0.05 | 0.15 | >98 |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 |
0.15 -0.35 |
— | 0.1 | — | — | — | 0.05 | 0.15 | >98 |
| 6061 |
0.40 -0.8 |
0.7 |
0.15 -0.40 |
0.15 | 0.8-1.2 |
0.04 -0.35 |
— | 0.25 | — | 0.15 | — | 0.05 | 0.15 | >98 |
| 7075 | 0.4 | 0.5 |
1.2 -2.0 |
0.3 | 2.1-2.9 |
0.18 -0.28 |
— | 5.1~6.1 | — | 0.2 | — | 0.05 | 0.15 | >98 |
Q. Are you a factory or trading company?
We are a factory company.
Q. How to ensure the quality of your products?
ISO9000, client reqirements, product standards,strict inspection to control raw material,production process and final products
Q. How do you resolve the problem about your products?
Person of aging services: For customer complaints commissioner set up a special complaint handling,complaint issues recorded the first time and find the relevant person in charge of the feedback and resolve. Details check our "Quality corrective action report"
Q. What is the MOQ?
A. Sample order is acceptable, And some samples can be free.
Q. How long do you need the delivery time?
1)Supply within 5-10days (product in our stock list)
2)Custom products need to be calculated according to the quantity
Q.What 's your payment terms?
T/T , L/C at sight , Western Union
Q.How can we get your price ?
We need below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
