Carbon Steel Flat Head Pozi Drive Euro Screws for Furniture M4 Zinc Finish
Carbon Steel Flat Head Pozi Drive Euro Screws for Furniture M4 Zinc Finish

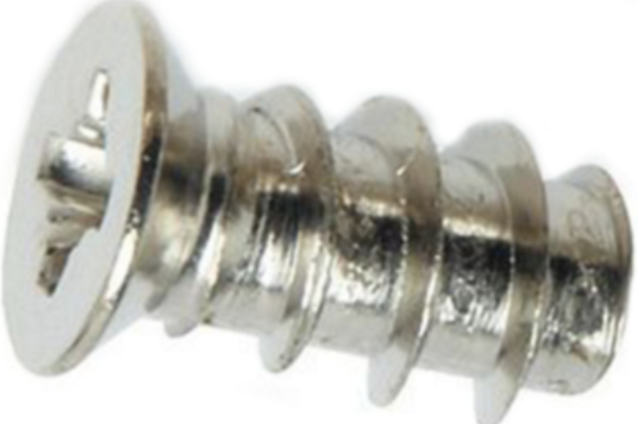

Flat head Euro Screws are made of steel ANSI 1010 with zinc plated , Phillips drive head and flat point style design for cabinets . Wide thread pitch and self tapping function , do not need full pre-hole .quick installation with less power .
Thread diameter : 4.8 ( #10 )
Length : 10
Head diameter : 9.5
Pitch : 1.5
Hardness : HV 25
Finishing : Blue Zinc
Material : C1010
Pitch for Euro screws are similar tapping threads , but the angle for threads are smaller , the sizes from 2.2 to 6.3 ( thread diameter ) and length is 40 max .

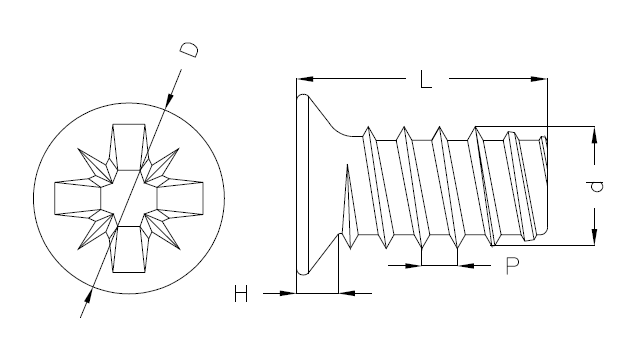

| d | 4.8 |
| H | 3 |
| D | 9.5 |
Thread specification for Euro screws
| d | 2.2 | 2.9 | 3.5 | 3.9 | 4.2 | 4.8 | 5.5 | 6.3 |
| H | 1.3 | 1.7 | 2.1 | 2.3 | 2.5 | 3 | 3.4 | 3.8 |
| D | 4.3 | 5.5 | 6.8 | 7.5 | 8.1 | 9.5 | 10.8 | 12.4 |
Materials
Euro screws are normally made from carbons steel with property class from 4.8 to 8.8 for different installed requests .
Carbon steel codes
1008 , 1010 , 1018 , 1022 , 1035 , 1045 , SCM 435
Finish
Euro screws are plated zinc with silver color for corrosion resistance
Finish description : Blue zinc
Finish thickness : 8 um
Environmental protection standard : RoHS ( 2002/95-EC )
Features
1 , Quick and easy operation
2 , Recycle use
3 , Long Service
4 , Environmental protection
5 , Standard Sizes
6 , Harden material
7 , Simple and practical structure
