M6 Phillips Drive Pan Head Thread Forming Screws Harden Steel Zinc Plated Fastener
M6 Phillips Drive Pan Head Thread Forming Screws Harden Steel Zinc Plated Fastener
Thread rolling screw is also named as thread forming screw or taptie screw , it has a triangle shape thread that from point to 1/3 of the threaded length . this triangle design can stop screw to back out and secure material more tightly .
● High tensile strength
● Perfect vibration resistance
● Good resistance loose
● Torsional strength
● Hard Material
● Wear resistance
Drill a Pilot hole before installing thread rolling screw , the hole will be screwed threads during thread rolling screw driving as self-tapping .

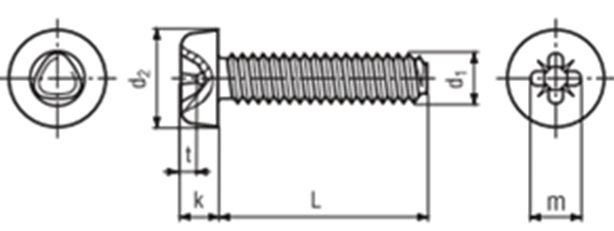

Specification
| d1 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 |
| d2 | 4.5 | 5 | 6 | 8 | 10 | 12 | 16 |
| Kmax | 1.5 | 2.12 | 2.52 | 3.25 | 3.95 | 4.75 | 5.6 |
| t max | 0.9 | 1.52 | 1.93 | 2.36 | 3.1 | 3.48 | 4 |
| t min | 0.8 | 1.27 | 1.68 | 1.9 | 2.64 | 3.02 | 3.3 |
| m | 2 | 2.6 | 3 | 4.3 | 5 | 6.7 | 7.6 |
| drive | 1 | 1 | 1 | 2 | 2 | 3 | 3 |
Physical Performance
| Specification | Material | Case hardness | Core hardness | Torsion Kg/cm |
| M3 | ANSI1022 | 450 HV Min | 270 HV Min | 15 |
| M4 | ANSI1022 | 450 HV Min | 270 HV Min | 34 |
| M5 | ANSI1022 | 450 HV Min | 270 HV Min | 72 |
| M6 | ANSI1022 | 450 HV Min | 270 HV Min | 122 |
| M8 | ANSI1022 | 450 HV Min | 270 HV Min | 295 |
Finishing
| Finishing | Colors | Thickness | Charicteristic |
| Zinc | Blue ,White ,Black ,Yellow | 5-107μm | Bright and smooth surface ,corrosion resistance |
| Nickel | Silver | 1～3μm | Wear resistance ,bright appearance , anti-corrosion |
| Polishing | Silver | 0.01mm ( reference ) | Improving brightness of surface |
| Tin | Silver | 0.13～1.27μm | Good ductility ,corrosion resistance ,lower melting point ,eco-friendly ,brightness |
| Brass | Copper | 5gm～8gm | Good dispersibility ,Bright appearance |
| Dacromet | Grey | 4-8μm | High corrosion resistance , No hydrogen embrittlement ,Heat resistance ,Easy to plated more ,eco-friendly |
| Chrome | Silver white | 0．25～0．5μm |
Harden surface ,Bright surface ,Heat resistance ,Wear resistance Corrosion resistance and eco-friendly |
Installation
1 ,Thread rolling screws can be used with a flat washer or spring washer for more good secure purpose
2 , Need a pre-drilling hole before installation
3 , Operated by power tool is better .
Materials
Carbon steel
1018 , 1022 , 1035 , 1045 , SCM 435 and 40CRO
Stainless steel
SUS 201 , SUS 304 ,SUS 316 , SUS 416 ,SUS 430 and SUS 420
