Sheet Metal Stamping Parts 15mm Height Black Spring Steel V Shaped Brackets

Sheet Metal Stamping Parts 15mm Height Black Spring Steel V Shaped Brackets

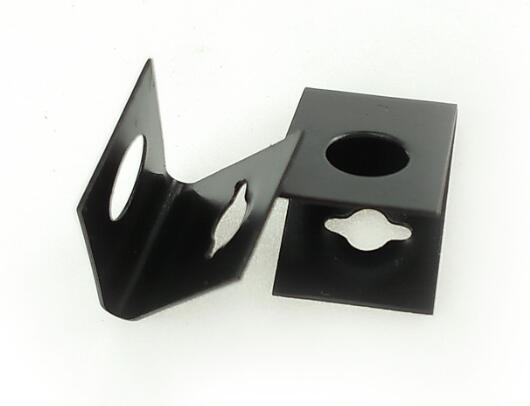

Spring steel V bracket is stamped in sheet with holes for screw to secure parts and brackets after assembled , both holes are placed on each side and stand one a parallel line face to face so that screw can be gone from one hole to another hole . a hole in side is round but is a clip mouth in the hole for another side , this clip mouth provides fastening screw purpose .

Generally , V brackets are fit for self tapping screws with sharp point .

Material

V brackets are made of spring steel 1065 for good flexibility request .

Features

1 , Good elongation

Spring steel V bracket stamping parts are engouh flexible , they can back to old places even are deformed under pressure .

2 , High Tensile strength

The tensile strength for Spring Steel V brackets is up to 1050 Mpa .

3 , Strict Tolerance

Spring Steel V brackets are made in small toleranes +/-0.1 mm .

4 , Stable dimensions

Spring steel V brackets can be used many times  and a tiny difference on sizes even have been served much times .

Physical Performance

Specification

Note : All are in millimeters

                                          Spirng steel V bracket stamping parts

Finish

Spring steel V bracket stamping parts are plated in black zinc with thickness 5um . , besides ,  V bracket stamping parts are also available for following finish

Zinc

The most popular with bright and smooth and resistant corrosion , the finish thickness from 1 um to 25 um .

Nickel

The film thickness is 1～3μm , improves brightness and wear resistance

Tin

With film thickness 0.13～1.27μm , tin finish with bright surface and good ductility ,corrosion resistance ,lower melting point ,eco-friendly features .

Chrome

Chrome finish is silver white color and the thickness of film is 0．25～0．5μm normally . chrome finish has many practical Features like Bright appearance ,Wear resistance ,Corrosion resistance ,Hard plating film ,Heat resistance .

Packing

Spring steel V brackets are packed 500 pcs each bag , and 20 bags to a carton with chipboard . we accept customized packages.

Shipping Policy

Normal shipment is epxpress service for small order that quantiy is below 50 kgs , we can check the shipping cost for you if you are more like CFR or cIF trade terms .

We manage different brackets stamping parts in materials for wide industry application , please contact us if you need any help or need on stamping parts and other metal fastener .
