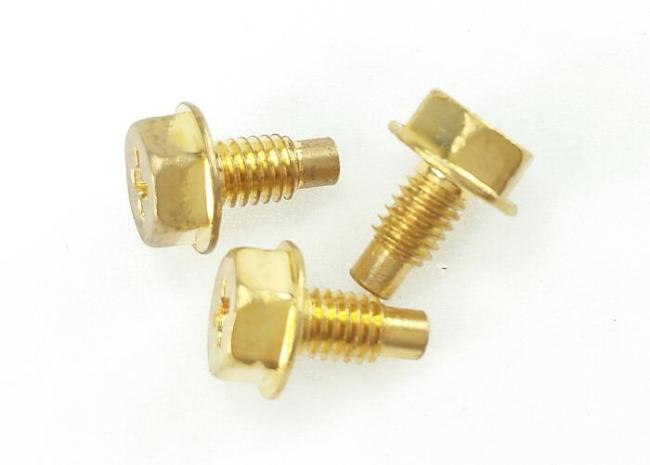

Lead Point Brass Screws M5 Philips Drive Hex Washer Head Fastener
Lead Point Brass Screws M5 Philips Drive Hex Washer Head Fastener
Brass screws are designed as a hex washer head and phillips drive socket for screw driver bit with PH 2 , washer head design helps screws to secure parts more tighten and improve security ; dog point is known as lead point for screws are for leading purpose when brass screws are driving and fixed quickly .
Material
Brass screws are made of alloy brass with model No. CuZn37 for electronics , they are also made of in Brass CuZn35 , CuZn40 , CuZn37Pb1 and CuZn39Pb1
Features
Perfect conduction
Brass screws are a good choice for assembly in electronics components that need transmit of power from one part to another part .
Wear resistant
Brass screws with good elongation and not easy to be slipped when they are assembled .
Durable corrosion
Do not need extra finish or surface treatment for corrosion , they are good at stopping corrosion .
Resistant heat
Brass screws can be workable even temperature is over 200°.
Bright appearance
Brass screws are not be reacted with other chemicals , and the performance on corrosion proof and roughness are more good after nickel plated .

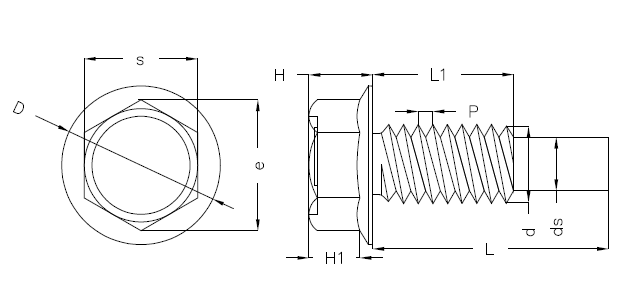

Specification
| Thread dia. | d | M5 |
| Length | L | 10 |
| Hex head dia. | S | 12 |
| Head height | H | 4.5 |
| Pitch | P | 0.8 |
| Washer dia. | D | 10.5 |
Hex washer head brass screws
Thermal Performance
| Fusing point(℃) | 880~900 |
| Specific heat capacity(0~100℃,KJ·kg-1K-1) | 0.085 |
| Heat conductivity(W·m-1·K-1) | 125 |
| Resistivity(20℃,10-6Ω·m) | 0.07 |
Mechanical Property
| Tensile strength σb (MPa) | 295 |
| Yield Strength σs (MPa) | 155 |
| Elongation δ5 (%) | 25 |
| Density g/cm3) | 8.5 |
Application
Brass Screws are mainly used to items that request on corrosion resistance and conduction . eg
● Printer
● Computer
● Icebox
● TV
● Electric detector
● Water pump
● Robot in water
Optional Surface Finish
Generally , brass screws are not needed to be plated , but for more longer service or high request on roughness , brass screws can be plated as following finish .
1 , Zinc
Most popular finish and various colors for choice . The resistance of rust is good and eco-friendly .
2 , Nickel
Make the surface of the screws more bright and harden and the performance of screws will be improved .
3 , Tin
Very perfect to be anti-rust , and widely used to electronic components .
4 , Chrome
Harden surface ,Bright surface ,Heat resistance ,Wear resistance Corrosion resistance and eco-friendly
There are more specifications for brass screws with different designs , welcome you to contact us for good business on fastener screws or other metal and non-metal parts .
