Non Asbestos Fiber Cement Board Production Line With 2000SQM Larger Capacity
Price:
30000USD
MOQ:
10 sets
Delivery Time:
30 days
Brand:
chuangxin
Product Description
Non Asbestos Fiber Cement Board Production Line With 2000SQM Larger Capacity

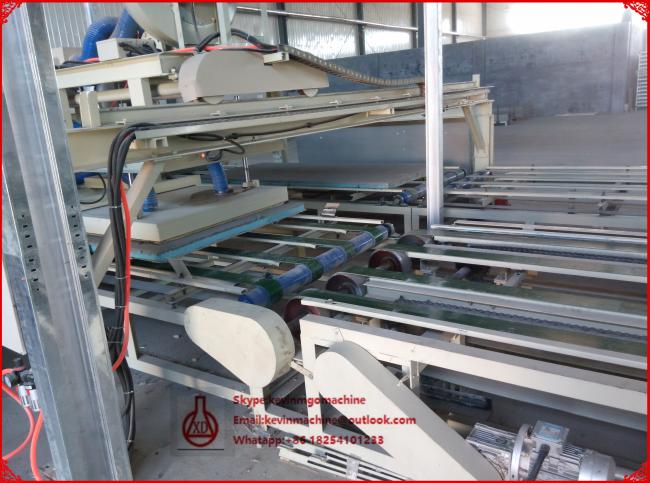

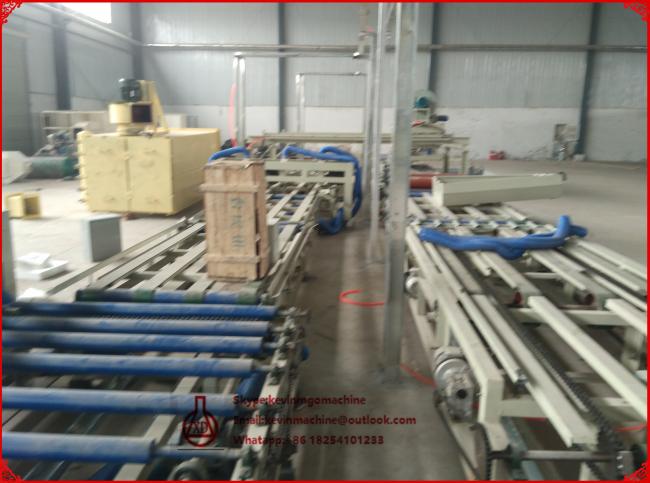

Fiber cement board production line
Basic technical data
1. Product name: Non-asbestos fiber cement board
2. Standard: In conformity with National Building Material Industry Standard JC/T 412.1-2006. < Non-asbestos fiber cement board>
3. Raw material: Cement, reinforced fiber, coal ash additives
4. Product specification: ( L*W*T) 2440× 1220× 6-30mm
5. Capacity: 3 million -5million /year( calculate by 2440× 1220× 6mm board, 24 working hours continous production )
6. Production organization arrangement: 1) 3 shifts per day, 8 hours per shift, 300working days per year 2)total wokers need for this line is 52 staff, including 2 management staff, 2 techincal staff and 48 workers.
No. Test items Standard indicators Test results
1 Bending degrees
Horizontal > =22Mpa 24.9Mpa Qualified
Vertical > =17 Mpa 21.4Mpa
2 Impact strength > =2.0 KJ/m2 3.7KJ/m2 Qualified
3 Indensity > =1.6g/cm3 1.72g/cm3 Qualified
4 Water absorption < =24% 16.8% Qualified
5 Waterproofness According to the National standard GB8041 tested -24H checking allow damp mark on the back of the board, but no water drop Meet the National standard GB8041 Qualified
6 Freezing resistance According to the National standard GB8041 tested- after 25 times Cycliccrackingno break and layer appear Meet the National standard GB804
Basic technical data
1. Product name: Non-asbestos fiber cement board
2. Standard: In conformity with National Building Material Industry Standard JC/T 412.1-2006. < Non-asbestos fiber cement board>
3. Raw material: Cement, reinforced fiber, coal ash additives
4. Product specification: ( L*W*T) 2440× 1220× 6-30mm
5. Capacity: 3 million -5million /year( calculate by 2440× 1220× 6mm board, 24 working hours continous production )
6. Production organization arrangement: 1) 3 shifts per day, 8 hours per shift, 300working days per year 2)total wokers need for this line is 52 staff, including 2 management staff, 2 techincal staff and 48 workers.
No. Test items Standard indicators Test results
1 Bending degrees
Horizontal > =22Mpa 24.9Mpa Qualified
Vertical > =17 Mpa 21.4Mpa
2 Impact strength > =2.0 KJ/m2 3.7KJ/m2 Qualified
3 Indensity > =1.6g/cm3 1.72g/cm3 Qualified
4 Water absorption < =24% 16.8% Qualified
5 Waterproofness According to the National standard GB8041 tested -24H checking allow damp mark on the back of the board, but no water drop Meet the National standard GB8041 Qualified
6 Freezing resistance According to the National standard GB8041 tested- after 25 times Cycliccrackingno break and layer appear Meet the National standard GB804
| , but no water drop | |||||
| High density | 1.4≤ D≤ 1.7 | ≤ 28 | __ |
| Compressive Strength | ~20 MPa (3, 000 PSI) |
| Impact Resistance | > 6 kJ/m2 |
| Tensile Strength | > 5.5 MPa |
| Density (Specific Mass) | ~1000 Kg/m3 (+/-< 2%) |
| Moisture Absorption | ~26% maximum saturation (slow absorption rate) |
| Moisture Content | ~6% |
| Water Vapour Diffusion | ~28 / 35 |
| Specific Heat | ~930 J/kgK |
| Thermal Conductivity | ~0.44 W / mK |
| Modulus of elasticity | ~6045 N/mm2 |
| Flexibility UNI E 12372 | ~20.1 N/mm2 maximum 12mm x 1220 x 2440 = 10 N/mm2 |
| Surface Alkalinity | ~10 Ph |
| Thermal Expansion Hot/Cold | 0, 01 mm/mC (from temp +20C to -20C) |
| Expansion in Water | less than < 0.02% from ambient to saturation |
| Freeze / Thaw - UNI EN 520 | 100 cycles without notable effects |
| Frost Resistance | no water drops form on surface |
| Combustibility / Fire Ratings | non-combustible / 12mm exceeds 1 hr fire rating |
| Dimensional tolerance | thick 0.2mm / width 2mm / length 3mm / Sq. 3mm |
| Toxicity Pollutants Heavy Metals - UNI EN 12457-2 | Below measurable levels of test instruments |
| Asbestos Analysis | Absent - not measurable |
| Formaldehyde Analysis | Absent - not measurable |
| Sound Attenuation (9mm) | tested design ASTM E90 = STC 48, 50, 55, & 60 |
| Color | Slate Grey and Chalk White |
| Surface texture | smooth one side; uniform machine textured back |
| Basic Compounds | (MgO)+(natural silicates)+(glass fibre)+(wood fibre) |
