Liquid Storage GFS Tanks for Water Treatment of Renewable Energy
Liquid Storage GFS Tanks for water treatment of Renewable Energy
What is Liquid Storage Tanks?
Glass-Fused-to-Steel (GFS), also known as Glass-Lined-Steel (GLS) and Liquid Storage Tanks, these names all means the same thing. that the tank panels are fused inside and out with a glass enamel that binds to the metal providing many advantages over standard epoxy coated or welded painted storage tanks.
Specification:
| Category | Specification |
| Coating Color | Dark green, or Customizing colors |
| Coating Thickness | 0.25~0.40mm, double coating |
| Acid and alkalinity proof | Standard pH: 3~11, Special pH: 1~14 |
| Adhesion | 3,450N/cm |
| Elastic | Same as steel sheet, around 500kN/mm |
| Hardness | 6.0 Mohs |
| Service life | ≥30 Years |
| Holiday test | >1500V |
| Permeability | Gas liquid impermeable |
The coatings applications system offers improved tank durability, longer life-cycle of the tank, better corrosion resistance and finish thickness are improved. We design and manufacture to national and international standards.
GFS Tank Advantages :
- The supply & installation of glass-fused-to-steel tanks
- On site tank surveys & comprehensive condition reports
- Refurbishment of tanks
- Emergency repairs
- Replacement Roofs
- Supply and retrospective fitting of ancillaries
- Replacement tanks
Design criterion & certificates: :
OSHA, EN28765, NSF/ANSI 61, ISO9001, FDA, AWWA-D103-09
Application Fields including:
Power and energy
Biogas biomass Fuel oil Diesel
Aviation oil Kerosene Drilling mud
Process water DI water Reverse osmosis water
Boiler feedwater Coal storage Fly ash silo
Water supply and treatment
Potable water Water purifying tank RO water
Bitter-brackish water Disinfecting water Sea water Desalinization
Raw water / fresh water Fire-fighting water Lime silo
Irrigation water Saline water / brine water Clarification pool
Biological filter Sedimentation container Aeration tank
Wastewater treatment
Buffer pool Regulation tank Water purifying tank
Aerobic reactor Anaerobic reactor Sedimentation container
Biological filter Leachate storage Sludge tank
Effluent treatment Irrigation water Animal wastes
Industrial dry bulk storage
Mineral Chemicals Foods
Wood product Petrochemicals Plasthetics
Stone / clay / glass Mining Industry Grain / seeds
Who we are?
Center Enamel Co., Ltd has been manufacturing and installing a complete line of bolted steel tanks and enamel storage tanks for the potable water, wastewater, fire protection, rain harvesting and bio energy digester Industries since 1989.
CEC Advantages:
- R&D Ability
With nearly 30 years experience in enameling industry, Center Enamel Co.,Ltd has become the largest and most professional enamel tank manufacturer in China.
We already established a professional R&D team and advanced laboratory. With this strong enameling R&D ability, we can meet various demands of customers.
- Advanced Production Line - CNC & Automatic production machine
- Quality Control
- Raw Material Test.
- Enamel Sample Test
- Destructive Test
- Acid and Alkali Resistance Test
- 1500V Holiday Test
- Adherence Test
- Enamel Thickness Test

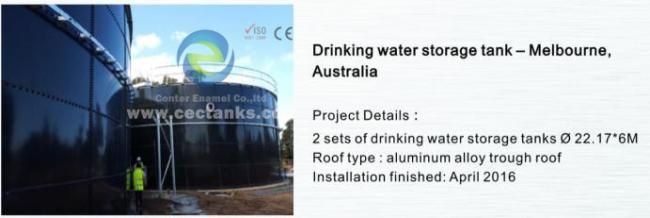

Project reference
