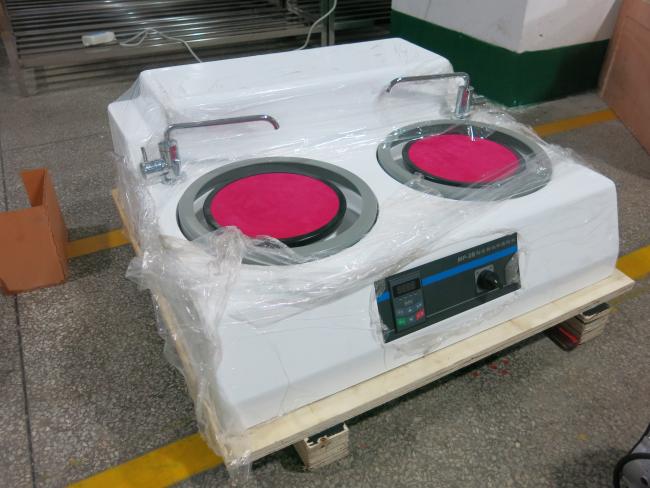

Metallographic Sample Grinding and PolishingMachine (MP-2B)

Metallographic Sample Grinding and PolishingMachine (MP-2B) Application:

MP-2B Grinding and Polishing Machine suitable for metallographic specimen pre-grinding, grinding and
Polishing operation, it is the necessary equipment to make metallographic specimen.


Metallographic Sample Grinding and PolishingMachine (MP-2B) Features:

1. It's equipped with cooling device, used to cooling the sample when grinding, to prevent the sample over
Heating and destroy metallographic organization.
2. The left disc is used for grinding and the right disc for polishing, so 2 people can operate at the same
Time.
3. It's easy to operation, safe and reliable

Technical Parameters & Accessories:

1. Grinding plate: Φ 250mm; Fast changeable
2. Range of rotating: 0-1280 RPM
3. Rotating speed adjustable, digital display
4. Rotary cooling system device
5. Working Voltage 220V, 50Hz.

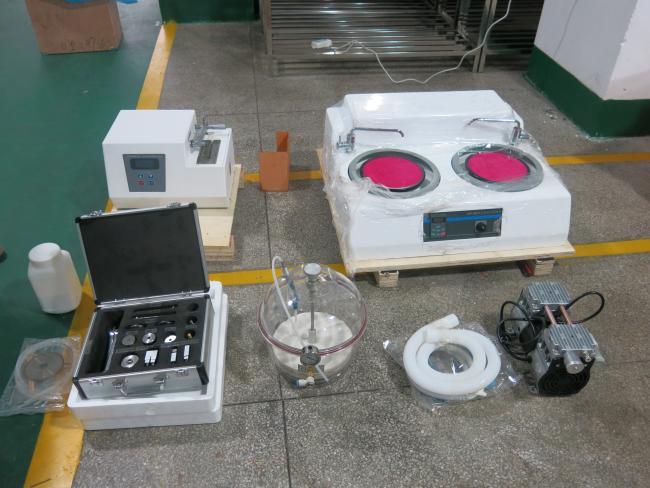

6. Accessories: Metallographic sand paper, polishing fabric, normal polish plate, magnetic polish plate
