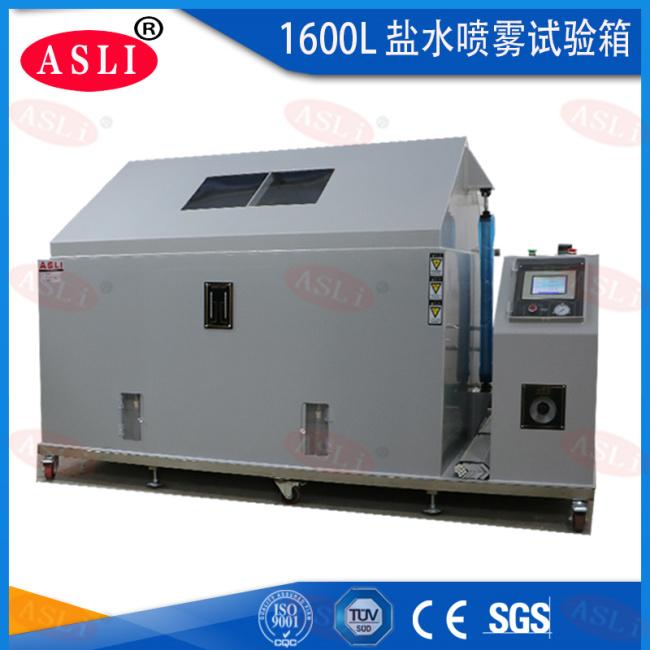

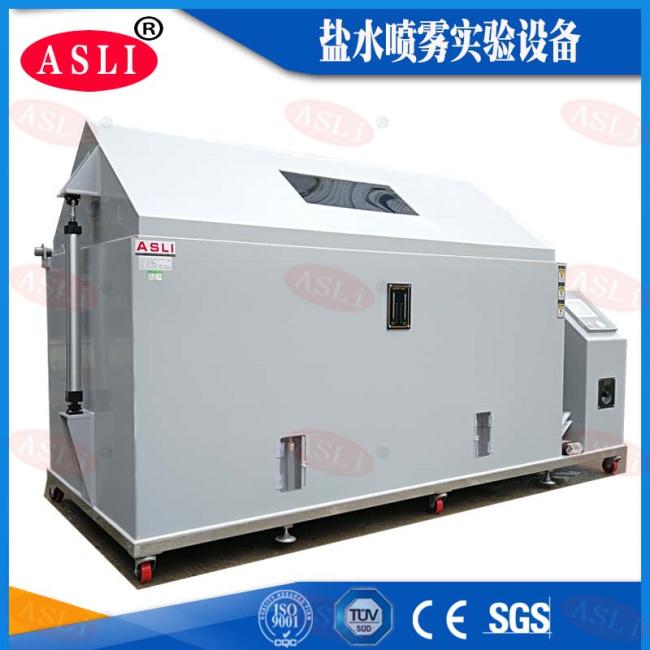

Programmable Corrosion Test Chamber Salt Spray Environmental Test Chamber
Programmable Corrosion Test Chamber Salt Spray Environmental Test Chamber
Customized Programmable salt spray test chamber for Application:
480 Liters Programmable Nss Cass Corrosion Resistance Salt Spray Tester is specially designed for the testing of the corrosion erosion Resistance of the products after their material surfaces have been treated with electric plating, anodizing, Spray coating, anti-rusting oil and other anti-erosion treatment.
Customized Corrosion Test Chamber of Technology Parameter:
| Model | SH-60 | SH-90 | SH-120 | SH-160 | SH-200 | ||||
| Internal Dimension W*H*D (mm) |
600*450*400 | 900*600*500 | 1200*800*500 | 1600*800*500 | 2000*1000*500 | ||||
| External Dimension W*H*D (mm) |
1100*600*1200 | 1400*950*1200 | 1900*1300*1400 | 2300*1300*1400 | 2700*1500*1500 | ||||
| Lab Temperature | Saline test (NSS ACSS) 35±1 degree C ;Corrosion Test (CASS)50±1 degree C | ||||||||
| Pressure Bucket Temperature |
Saline test method (NSS ACSS) 47±1 degree C / Corrosion Test (CASS)63±1 degree C | ||||||||
| Lab Capacity(L) | 110 | 270 | 480 | 800 | 1500 | ||||
| Saline Capacity(L) | 15 | 25 | 40 | 40 | 40 | ||||
| Saline Concentration | 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O | ||||||||
| Compressed Air Pressure(Kgf) |
1.0~6.0 | ||||||||
| Spray Volume | 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) | ||||||||
| Spray Form | Continuous Spraying or Programmable Spraying | ||||||||
| Power | AC220V 1phase 3 lines15A | ||||||||
| Weight(Kg) | 65 | 80 | 120 | 160 | 200 | ||||
Application with salt spray testing equipment:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ± 0.1º C
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. 480 Liters Programmable Nss Cass Corrosion Resistance Salt Spray Tester is our star products , and we had obtained the CE certification for this machine .
