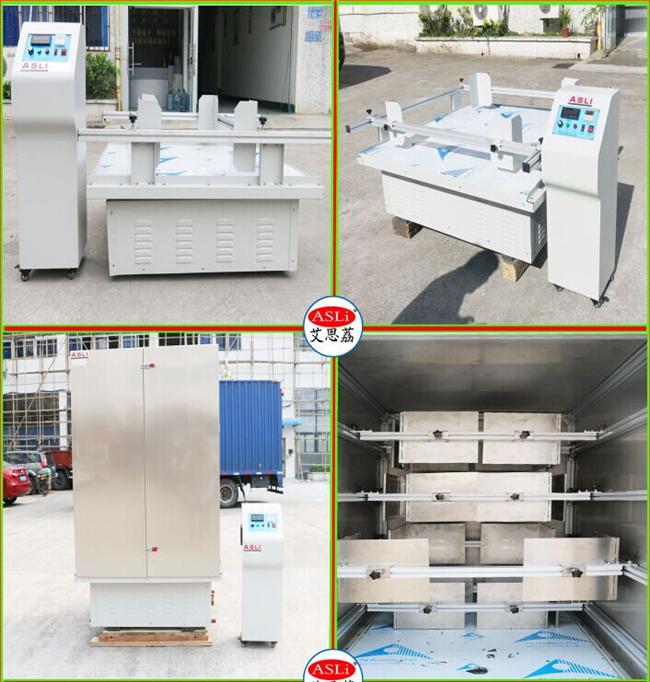

Package Transportation Simulation Vibration Test Equipment for Test Battery
Package Transportation Simulation Vibration Test Equipment for Test Battery
Package Transportation Simulation Vibration Tester for Battery Test is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics,equipment,etc., under simulated transport conditions, according to American and EU transport standard (ASTM,IEC).
Transportation Vibration Tester for Battery Test Features:
1. Unique design, easy to use
2. Low noise, with buffering function
3. Frame is powder coating, working table is stainless steel with aluminium alloyrail track
| Technical Parameters | |||||
| Model | AS-100 | AS-200 | AS-300 | AS-600 | AS-1000 |
| Load (Kg) | 100 | 200 | 300 | 600 | 1000 |
| Effective Area WxD (mm) | 1200×1000 | 1200×1000 | 1200×1300 | 1300×1400 | 1500×1500 |
| Weight (Kg) | 200 | 250 | 350 | 450 | 600 |
| External Dimension WxHxD (mm) | 1300×650×1300 | 1300×650×1300 | 1300×650×1400 | 1400×750×1500 | 1600×850×1600 |
| Rotating Speed (RPM) | 150~300 | ||||
| Amplitude | 25.4mm(1inch), (Accord ASTM.IEC transport standard) | ||||
| Time Setting (Approx.) | 0~999hours | ||||
| Mode of Vibration | Reciprocating type | ||||
| Power | AC220V or according to the equipment specification | ||||
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
