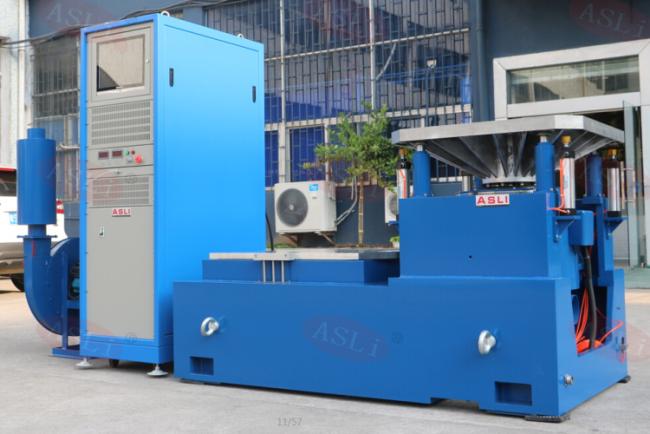

Electrodynamics Vibration Test Equipment Vertical and Horizontal High Frequency

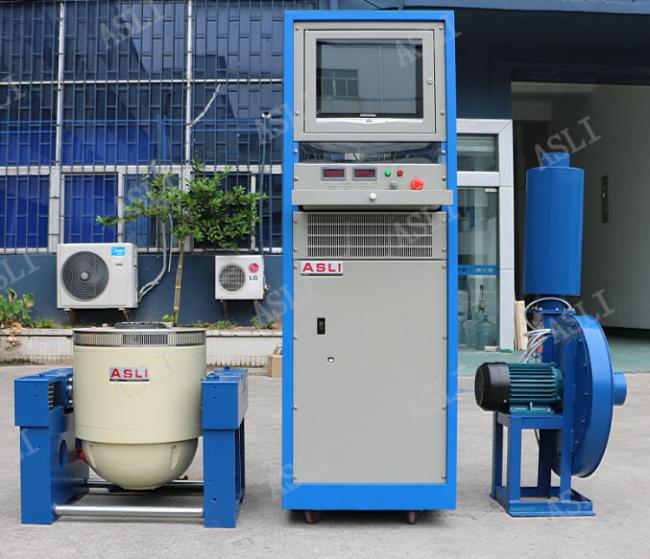

High Frequency Vertical and Horizontal Electrodynamics Vibration Shaker
|
Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) |
Rated Speed (m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) |
moving coil (Kg) |
Dimension of Moving coil (mm) |
|
ES-3 |
3000 |
3000 |
3-3500 |
1000 |
1.6 |
25 |
100 |
3.5 |
Φ150 |
|
ES-3a |
3000 |
3000 |
3-3500 |
400 |
1.6 |
40 |
120 |
9 |
Φ230 |
|
ES-6 |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
25 |
180 |
6.5 |
Φ230 |
|
ES-6a |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
51 |
250 |
12 |
Φ230 |
|
ES-10 |
10000 |
10000 |
3-3000 |
1000 |
1.8 |
51 |
270 |
14 |
Φ240 |
|
ES-20 |
20000 |
20000 |
3-3000 |
1000 |
1.8 |
51 |
300 |
30 |
Φ320 |
|
ES-30 |
30000 |
30000 |
3-2800 |
1000 |
1.8 |
5l |
450 |
40 |
Φ450 |
|
ES-40 |
40000 |
40000 |
3-2800 |
1000 |
1.8 |
51 |
500 |
50 |
Φ450 |
|
ES-50 |
50000 |
50000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
50 |
Φ450 |
|
ES-60 |
60000 |
60000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
60 |
Φ450 |
|
ES-100 |
100000 |
100000 |
3-2500 |
1000 |
1.8 |
51 |
1000 |
90 |
Φ450 |
|
ES-120 |
120000 |
120000 |
3-2200 |
1000 |
1.8 |
51 |
1100 |
90 |
Φ500 |
Technical parameters of horizontal expander:
technical parameters of vertical expander:
 |
 |
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
