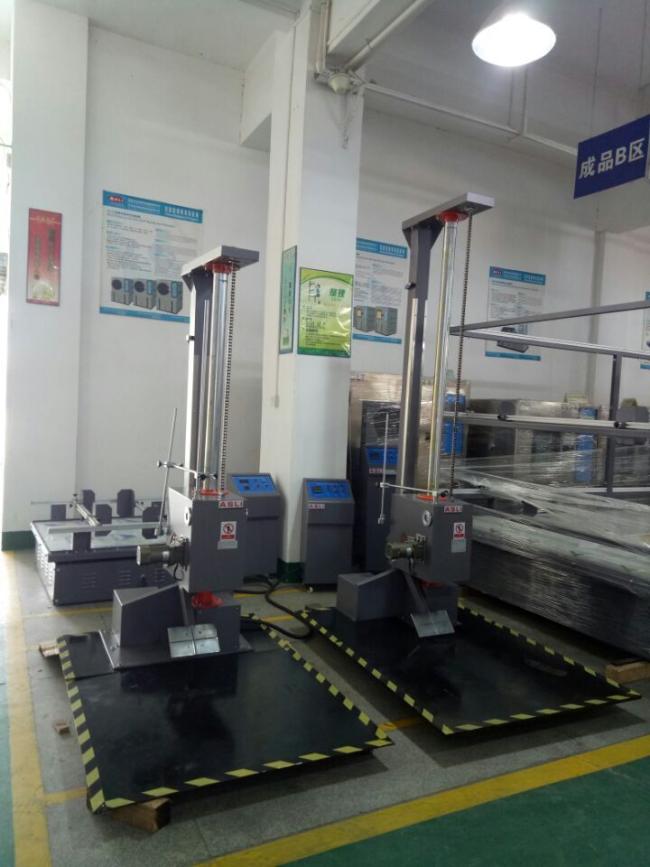

Laboratory Drop Testing Equipment for Packaging Industry
Laboratory Drop Testing Equipment for Packaging Industry Characteristics:
1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.
3. High Accuracy, direct display
4. It is steady when it is dropping and lifting
Uses:
Laboratory Drop Testing Equipment for Packaging Industry can determine the ultimate dimension in drop testing and incline impact testing for product and package performance which uses as reference to improve the packing. Special fixtures are available to allow for corner and edge drops.
Design Standard: GB4757.5-84 JISZ0202-87 ISO2248-1972(E)
| Model | AS-DT-120 | AS-DT-150 | AS-DT-200 |
| Max. Weight of Test Samples (Kg) | ≥200 | 60 | 60 |
| Height of Drop (mm) | 0~1200 | 300~1500 | 300~2000 |
| Max. Dimension of Test Sample WxHxD (mm) | 1200x1200x1200 | 1000x800x1000 | 1000x800x1000 |
| Falling Floor Size WxHxD (mm) | 1400x50x2000 | 1700x50x1200 | 1700x50x1200 |
| Drop Method | Face, edge, angle | ||
| Test Bench External Dimension WxHxD (mm) | 1400x2000x1800 | 1700x2700x1200 | 1700x2700x1200 |
| Weight (Kg) | 1500 | 600 | 700 |
| Power | AC 380V | ||
Our advantages:
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Our concept:
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
Exhibition:
If you have any need more information about Laboratory Drop Testing Equipment for Packaging Industry, please don't hesitate to contact us.
