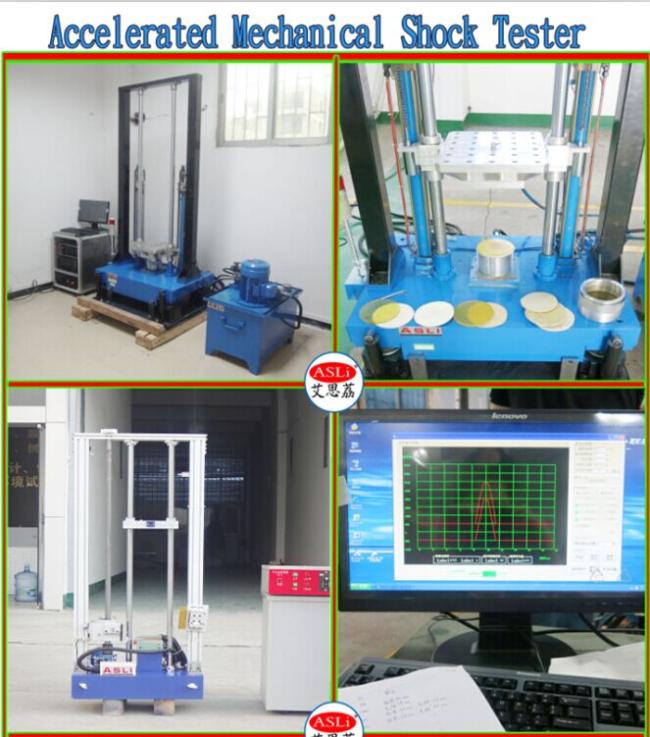

MIL-STD-202G standard mechnical shock test machine for testing SMD components and Leaded components is mainly used for small products for impact test, to assess the product’s ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Features of MIL-STD-202G standard mechnical shock test machine for testing SMD components and Leaded components
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.
Technical Parameters about 30ms Pneumatic Shock Testing Equipments For Electronic Products Impact Testing:
| Model | SS-5 | SS-10 | SS-25 | SS-50 | SS-100 | SS-200 | SS-400 | |
| Load Capacity (Kg) | 5 | 10 | 25 | 50 | 100 | 200 | 400 | |
| Table Size (mm) | 120x120 | 200x200 | 350x350 | 450x450 | 650x650 | 750x750 | 850x850 | |
| Pulse Acceleration (m/s2) | Half Sine Wave | 150~15000 | 150~15000 | 150~15000 | 150~6000 | 150~6000 | 150~3500 | 150~1500 |
| Trapezoid Wave | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~500 | |
| Sawtooth Wave | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~500 | |
| Pulse width | Half Sine Wave | 0.5~18 | 0.6~18 | 0.8~25 | 1.5~30 | 1.5~30 | 2~30 | 6~30 |
| Trapezoid Wave | 6~12 | 6~12 | 6~18 | 6~12 | 6~12 | 6~12 | 6~12 | |
| Sawtooth Wave | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | |
| Drive Mode | Mechanical drive | Hydraulic drive | ||||||
| External Dimension WxHxD (mm) |
800x 2200x900 |
800x 2200x900 |
850x 2250x950 |
1000x 2600x1300 |
1100x 2700x1400 |
1300x 2700x1600 |
1300x 2700x1650 |
|
| Weight (Kg) | 600 | 700 | 900 | 2600 | 3300 | 4000 | 4500 | |
| Hydraulic Oil | No #46 hydraulic oil | |||||||
| Power | AC 380V 50/60HZ | |||||||
Shock Control system is used for shock test machine series.Which adopted USB2.0 connect and communication with PC to transfer control instruction for measurement data , based on Windows operating system combined with a measurement system to realize automatic test. With the following functions: To control gas flow rate, gas pressure ; (Big model and high technical parameters required) To control pneumatic valve reversing and on-off ; (Big model and high technical parameters
required) To Measure lifting height
Package about impact tester:
PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
Service:OEM service,Design service,Buyer lable service.
After-sale service: feedback within 2 hours after get the call.
