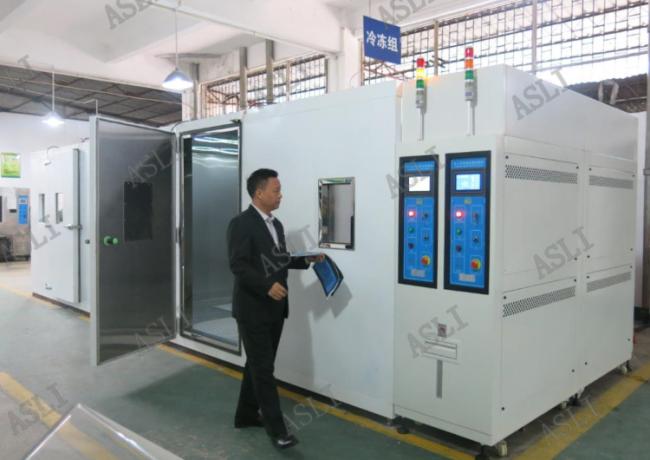

Environmental Simulation Walk In Stability Chamber for Laboratory Testing
Programmable Temperature Humidity Stability Walk In Test Room is suitable for testing extremely large equipment and device such as automobile shells, carriages, satellite electronic plates and photovoltaic plates. The temperature range is considerably wide and temperature rising and decrease rate is fast. Thus made it a perfect test equipment for manufacturing industry and research institutions.
|
Model
|
THR-volume (low-temperature options : A ~ F)
|
||
|
Inner Dimensions(cm)
|
Customers designated space size and design
|
||
|
Temperature Range
|
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)
High Temperature 80℃ (80℃ ~150℃ is optional)
|
||
|
Humidity Range
|
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
|
||
|
Indication Resolution/Distribution Uniformity of Temperature & Humidity
|
0.1℃; 0.1% R.H/±2.5℃; ±3.5% R.H.
|
||
|
Control Accuracy of Temperature and Humidity
|
±0.5℃; ±2.5% R.H.
|
||
|
Temperature Rising/Falling Velocity
|
Temperature rising approx. 0.1~3.0°C/min
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional) |
||
|
Drive-In Testing Chamber/Programmable Humidity Chamber Protection Devices
|
Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection
|
||
Walk in Climate Chamber Optional accessories:
1. Cable Port: Two size of cable port is available: Dia. 50mm, or Dia. 100mm.
2. Double door.
3. Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.
4. Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.
5. Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.
6. Entire ceiling blow-out duct
7. Water purifier
8. Dehumidifier
9. Temperature and humidity recorder
10. Status indication lamp
11. Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Laboratory Temperature Humidity Environmental Simulation Walk in Climate Chamber is our star products , and we had obtained the CE certification for this machine .
