High Frequency Sine Random Vibration Test Machine For Automotive Industry
|
High Frequency Sine Random Vibration Test Machine Parameter:
|
|||||||||
|
Model
|
Rated Sine
Force (N) |
Rated Random Force (N)
|
Frequency Range (Hz)
|
Rated Acceleration (m/s2)
|
Rated Speed (m/s)
|
Rated displacement (p-p) mm
|
Max. Loading (Kg)
|
moving coil(Kg)
|
Dimension of Moving coil (mm)
|
|
ES-3
|
3000
|
3000
|
3-3500
|
1000
|
1.6
|
25
|
100
|
3.5
|
Φ150
|
|
ES-3a
|
3000
|
3000
|
3-3500
|
400
|
1.6
|
40
|
120
|
9
|
Φ230
|
|
ES-6
|
6000
|
6000
|
3-3500
|
1000
|
1.6
|
25
|
180
|
6.5
|
Φ230
|
|
ES-6a
|
6000
|
6000
|
3-3500
|
1000
|
1.6
|
51
|
250
|
12
|
Φ230
|
|
ES-10
|
10000
|
10000
|
3-3000
|
1000
|
1.8
|
51
|
270
|
14
|
Φ240
|
|
ES-20
|
20000
|
20000
|
3-3000
|
1000
|
1.8
|
51
|
300
|
30
|
Φ320
|
|
ES-30
|
30000
|
30000
|
3-2800
|
1000
|
1.8
|
5l
|
450
|
40
|
Φ450
|
|
ES-40
|
40000
|
40000
|
3-2800
|
1000
|
1.8
|
51
|
500
|
50
|
Φ450
|
|
ES-50
|
50000
|
50000
|
3-2700
|
1000
|
1.8
|
51
|
750
|
50
|
Φ450
|

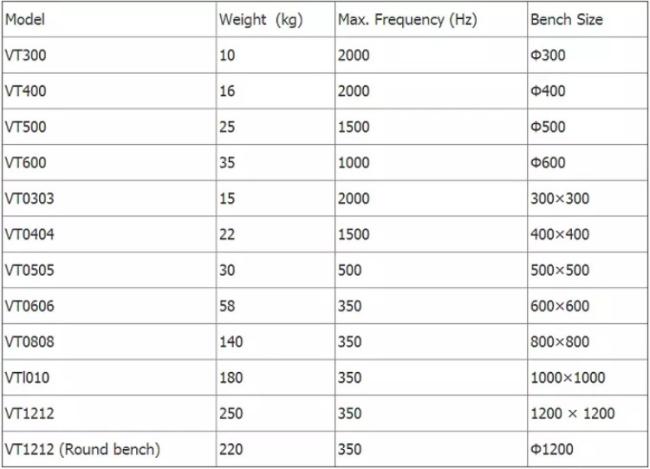

Technical Parameters of Vertical Expander
Technical Parameters of Horizontal Expander:
High Frequency Vibration Tester Specifications
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
